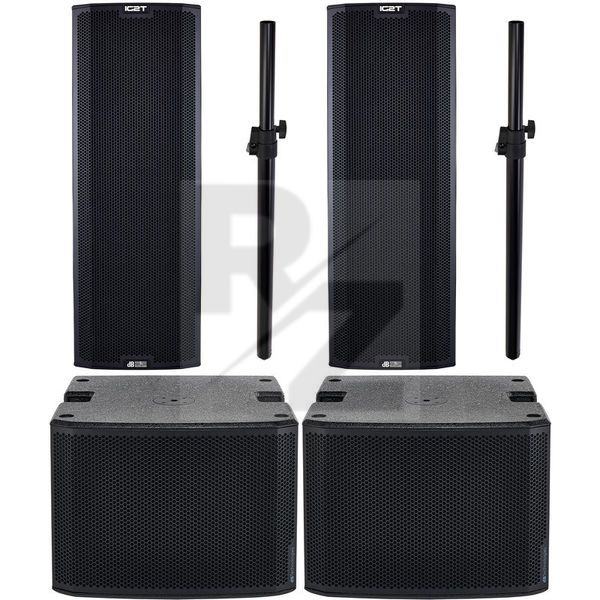

dB Technologies Ingenia IG2T Club-Set II

Technical Data

• Manufactured by DB Technologies
• Released in 2019
• Average price : $5420
• 2-Way Active Speaker
• Components: 2x 8" and 1" speakers
• Frequency range [- 10 dB]: 59 - 20,000 Hz
• Coverage pattern: 100° x 80°
• Max. SPL 128 dB
• Class D amplifier
• Power: 400 W RMS
• DSP controller
• Limiter
• EQ presets
• AD / DA converter
• Display
• 1 XLR / Jack input
• 1 XLR - Link output
• Mini USB
• 36 mm Speaker flange
• Dimensions (H x W x D): 646 x 228 x 315 mm
• Weight : 12.8kg
• Active 15" Bass reflex subwoofer with 4" voice coil
• Power: 900 W / RMS, 1800 W / peak
• Class D Digipro G3 amplifier
• Max. SPL: 133 db
• Frequency range: (-10dB): 42 - 110 Hz
• 5 Switchable crossover frequencies 70 - 110 Hz
• Control 28/56 bit DSP AD / D converter 24 bit / 48Hz
• Convection-cooled without fan
• Dynamic limiter
• RDnet port
• Controllable via Aurora Net Software
• Switchable delay up to 4.5 ms (21 ms via Aurora Net)
• Signal input: 1 x XLR female
• Signal output: 1 x XLR male
• Vertical or horizontal use possible
• 2 x M20 pole mount
• 2 Handles
• Housing made of plywood
• Dimensions : 620mm x 457mm x 620mm
• Weight 34.8 kg
• Colour: Black
• Distance Tube
• For satellite system
• Made of metal
• Adjustable from 935 - 1485 mm
• M20 for attachment to corresponding subwoofers
• Diameter: 35 mm
• Max load: 35 kg
• Weight : 2.1kg
• Colour: Black
• Made in Germany
