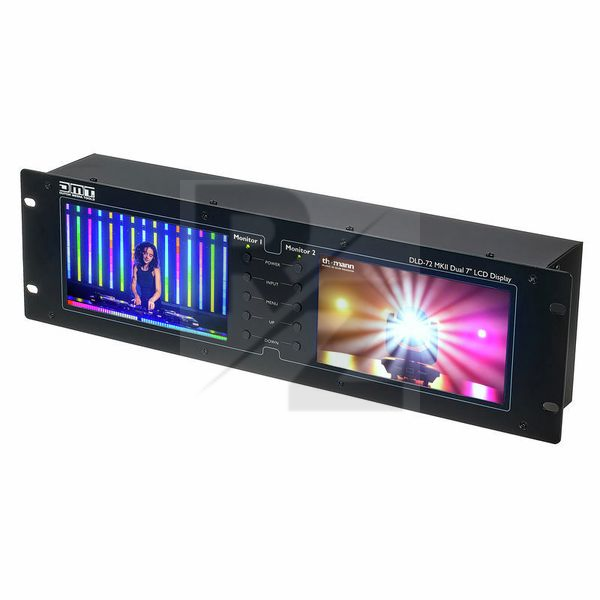

DMT DLD-72 MKII Dual 7" Display

Dual Monitor for Rack Mounting

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by DMT
Released in 2021
Average price : $423
For VJ monitoring, surveillance systems and other multimedia applications where monitoring is required
Suitable for VGA, CVBS and HDMI sources
The link outputs allow several DLD-72 MKII to be connected in a daisy-chain setup
The integrated splitter ensures that the HDMI signal is transmitted without signal loss
Both screens have their own menus with which the settings for each screen can be adjusted individually
1x HDMI 1.3
1x HDMI 1.3 (loop)
1x VGA in
1x VGA out
Analogue video input: BNC / RCA
Analogue video output: BNC / RCA
CVBS Input Impedance: 75 Ohm
CVBS Output Impedance: 75 Ohm
TFT Display
Display Resolution: 800 x 480 px
Display Size: 7"
Power supply: 100-240VAC 50-60Hz
Power consumption: 25 W
Power input connector: IEC C13 male
Height incl. handles: 98 mm
Width incl. handles: 482.6 mm
Depth incl. handles: 133 mm
Weight : 2.4kg
