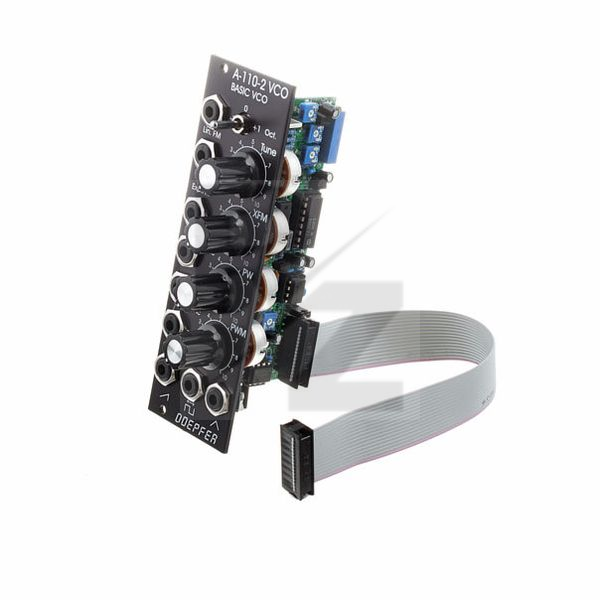

Doepfer A-110-2 Vintage Edition

Basic VCO for the A-100 modular system

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Doepfer
Released in 2016
Average price : $152
Vintage Edition with black front panel
Voltage controlled oscillator
3-Position toggle switch
Linear FM input and soft-sync input
Tune control range can be set between approx. 1/2 octave and 4 octaves via a jumper
Width: 8 HP / 40.3 mm
Depth: 50 mm (measured from the rear of the front panel)
Power requirements: + 12V: 150 mA (warm up period about 30 seconds), 60 mA (continuous operation) -12V: 30mA
