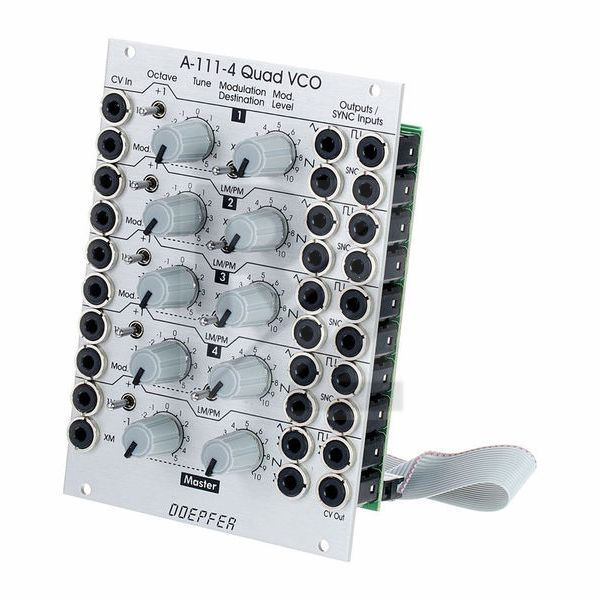

Doepfer A-111-4
Quad Precision VCO
Latest User Reviews
Four useful VCOs packed in a small format. It can give four good monophonic voices, but can also be the heart of a polyphonic system. Great sound, grear quality. Thanks Doepfer!
Four simple VCOs in one module
Each VCO can be frequency modulated and has a triangle, saw and pulse output.
The master section can combine all VCOs into one output, again with a choice of the three waveforms. This is useful to build a paraphonic voice. The tuning of the master section will affect all oscillators.
Hint: check the manual for jumper configuration to configure hard / soft sync and PWM.
Technical Data
- Manufactured by Doepfer
- Released in 2018
- Average price : $438
- Perfect for polyphonic or paraphone patches
- Four precision VCOs with output mixers and a master control unit
- Waveforms: Triangle, sawtooth and rectangle with individual outputs
- Minute 10 octave frequency range
- Master section with 1V / Octave control input
- Sum output of the individual waveforms and CV output (sum of all control voltages of the master unit)
- Width: 18 TE / HP
- Depth: 40 mm
- Electricity requirement: + 120mA (+ 12V) / -100mA (-12V)
