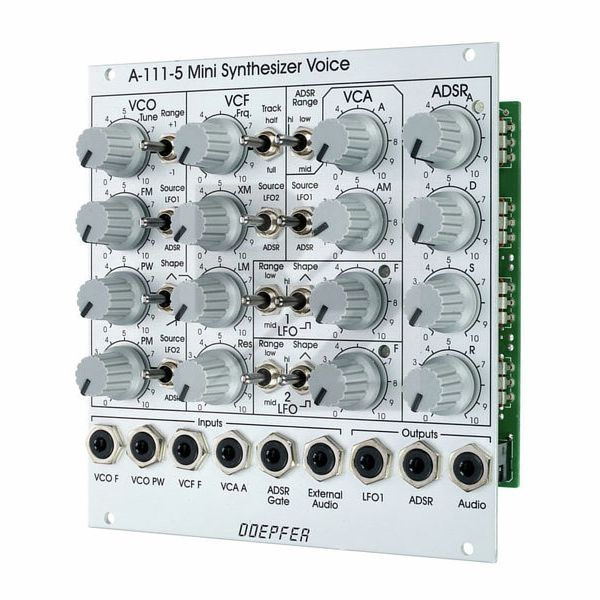

Doepfer A-111-5 Synthesizer Voice
Eurorack module
Latest User Reviews
Almost like the DDE
This module is often considered as the poor mans Doepfer Dark Energy, as the oscillator sounds less fatty than the DDE. But well, I guess it is not intended to be a 100% copy of the DDE. But the VCF has a lovely response that the DDE does not offer, ranging from lushy flute to metallic string.
Technical Data
- Manufactured by Doepfer
- Released in 2020
- Average price : $328
- Complete monophonic synthesizer voice
- VCO with sawtooth, pulse and triangle waveforms
- Adjustable pulse width
- PWM CV input with attenuator
- FM via LFO1 or ADSR envelope
- VCO frequency range: approx. 30 - 10000 Hz
- Low pass filter (-24 dB/oct.) with resonance
- Filter tracking switchable in two steps
- Linear and exponential filter FM
- VCA with AM via LFO1 or ADSR envelope
- ADSR envelope with 3 selectable time ranges
- 2 LFOs, each with triangle and square waveforms and three selectable frequency ranges
- Outputs for LFO1, ADSR and audio
- Current consumption: 80 mA (+12 V) / 50 mA (-12 V)
- Width: 24 TE
- Depth: 40 mm
