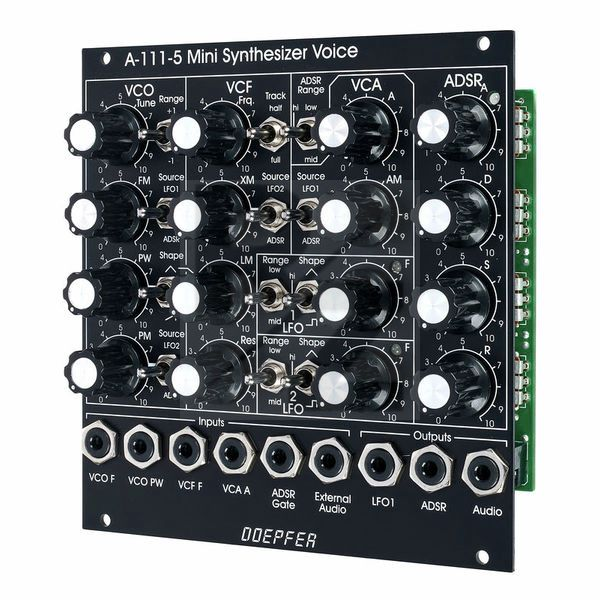

Doepfer A-111-5 Vintage Edition
Eurorack Module
Latest User Reviews
The New A-111-5 Is Spot On!
When Doepfer announced they were re-releasing the A-111-5 Mini Synthesizer Voice module with a new chip, I was a bit skeptical. The Dark Energy has a unique sound and I was worried that the new version of this module wouldn't be the same. I was wrong. It is a perfect recreation of the original module/synth. If you're thinking about getting one of these, but are having the same second thoughts that I had, don't sweat it! Get it while you still can! It sounds phenomenal. I'd rate it five stars across the board, but this is a rather basic synth voice, so I knocked off one star for features.
Technical Data
- Manufactured by Doepfer
- Released in 2020
- Average price : $372
- Complete monophonic synthesizer voice
- VCO with sawtooth, pulse and triangle waveforms
- Adjustable pulse width
- PWM CV input with attenuator
- FM via LFO1 or ADSR envelope
- VCO frequency range: approx. 30 - 10000 Hz
- Low pass filter (-24 dB/oct.) with resonance
- Filter tracking switchable in 2 steps
- Linear and exponential filter FM
- VCA with AM via LFO1 or ADSR envelope
- ADSR envelope with 3 selectable time ranges
- Two LFOs, each with triangle and square waveforms and three selectable frequency ranges
- Outputs for LFO1, ADSR and audio
- Current consumption: 80 mA (+12 V) / 50 mA (-12 V)
- Width: 24 TE
- Depth: 40 mm
- Black front panel
