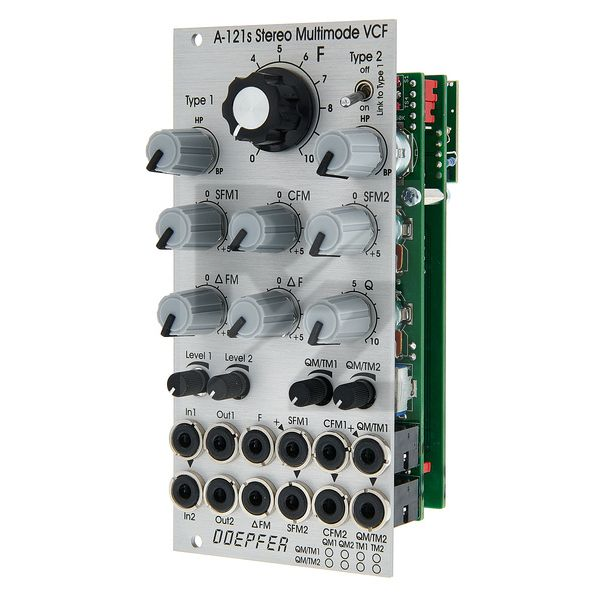

Doepfer A-121s

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Doepfer
Released in 2022
Average price : $284
Stereo multimode VCF
Each filter has continuously adjustable characteristics (from low-pass to notch and high-pass to band-pass) with a switchable link function
Filter frequency and resonance controls for both filters
Bipolar delta F control for the difference between the two filter frequencies
CV inputs for filter frequencies 1 and 2, for both filter frequencies and Delta F, each with a bipolar attenuator
CV input for each filter with an attenuator for resonance or characteristic, configurable via jumper
Two audio inputs with level controls and two audio outputs
Slope: - 12dB/oct.
Current consumption: 100mA (+12V) / 100mA (-12V)
Width: 12 TE
Depth: 45 mm
