Doepfer A-126-2 Frequency Shifter

Eurorack Module

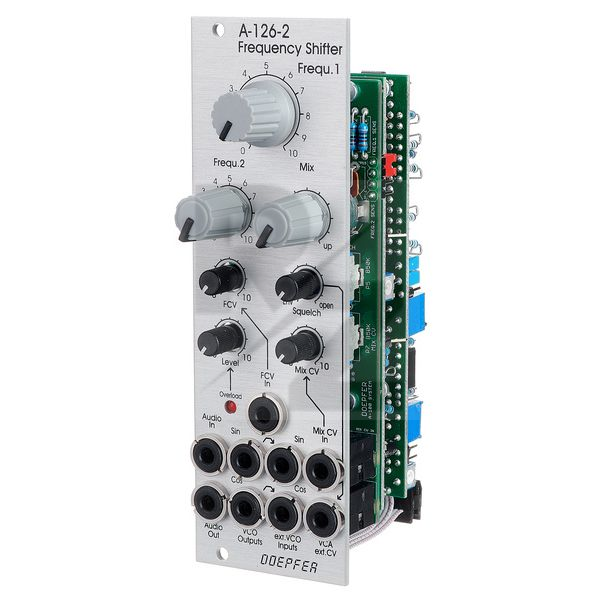

Image Doepfer A-126-2 Frequency Shifter

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

2 years ago

Almost perfect

Good sound as usual on Doepfer modules, but miss a couple of extra cv ins.

Technical Data

  • Manufactured by Doepfer
  • Released in 2022
  • Average price : $393
  • Analogue frequency shifter for audio signals
  • Coarse and fine control for frequency shift, range approx. 20 - 5000 Hz
  • Mix control for mixing down-shift and up-shift signal
  • Adjustable squelch function with integrated VCA and envelope follower
  • Level control with overload LED
  • Internal quadrature oscillator with sine and cosine outputs
  • Sine and cosine inputs for external VCO
  • CV input with attenuator for frequency and mix
  • CV control input for VCA
  • Audio input and output
  • Expandable with optional A-126-2 expander module
  • Current consumption: 80mA (+12V) / 70mA (-12V)
  • Width: 8 HP
  • Depth: 60 mm
