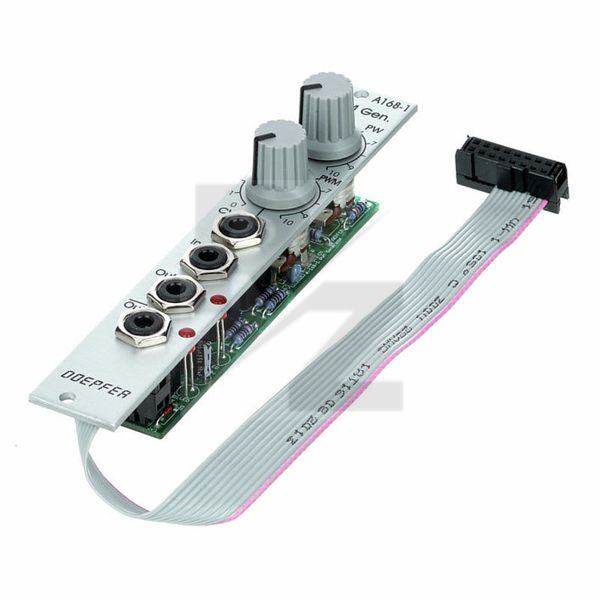

Doepfer A-168-1

PWM generator

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Doepfer
Released in 2016
Average price : $67
Eurorack module
Pulse-width generator
Derives a rectangular signal with an adjustable pulse width from an incoming triangular, sawtooth or sine signal
Manual pulse width controller (PW)
Control input for pulse width modulation with attenuator (PWM)
Signal input (In)
Output with LED display (Out)
Inverted output with LED display (/ Out)
Internal dimming potentiometer for PW centering
Internal dimming potentiometer for PWM
Width: 4 HP / 4 HP / 20.0 mm
Depth: 20 mm
Current consumption: +20 mA (+12 V) / -20 mA (-12 V)
