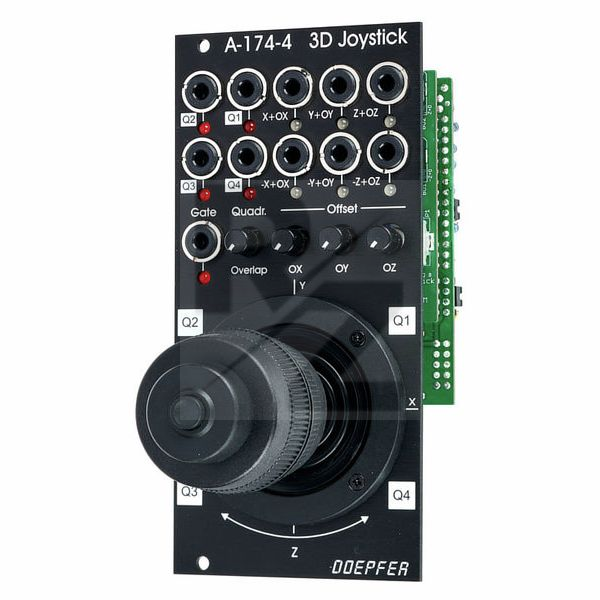

Doepfer A-174-4 3D Joystick VE

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Doepfer
Released in 2020
Average price : $206
Vintage Edition with black front panel
Joystick with X-/Y-axis
Rotation function (Z-axis) and gate button
X-, Y- and Z-axis self-resetting via spring mechanism
CV outputs for X-, Y- and Z-axis in non-inverted and inverted form (range: -5 V to +5 V)
CV offset controller per axis
4 Quadrant CV outputs (Q1-Q4) with adjustable overlap (range: 0 V to +10 V)
Gate output
Current requirement: 50 mA (+12 V) / 20 mA (-12 V)
Width: 12 HP
Depth: 50 mm
Joystick height: 70 mm
