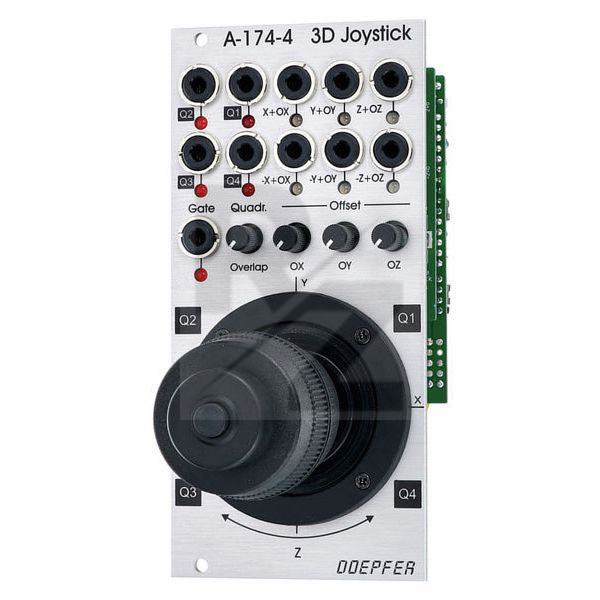

Doepfer A-174-4 3D Joystick
Eurorack module
Latest User Reviews
Does what you think it does!
Any axis and/or region can be connected to control any parameter on up to 10 modules provided there cv input. The build quality is exelent but it is a bit bulky, it can easily collide with patch cables on adjacent modules.
Just what I wanted
I decided that i needed a second joystick for my performance system, but I wanted one that was different to my existing one (Erica Black). The Black stays where it is when you take your hand away, but the Doepfer returns to zero. Combine that with the Z-plane adjustment and the plethora of output options and it's a winner. Apparently it generates gates too, although I haven't tried that yet.
Technical Data
- Manufactured by Doepfer
- Released in 2020
- Average price : $189
- Joystick with X-/Y-axis
- Rotation function (Z-axis) and gate button
- X-, Y- and Z-axis self-resetting via spring mechanism
- CV outputs for X-, Y- and Z-axis in non-inverted and inverted form (range: -5 V to +5 V)
- CV offset controller per axis
- 4 Quadrant CV outputs (Q1-Q4) with adjustable overlap (range: 0 V to +10 V)
- Gate output
- Current requirement: 50 mA (+12 V) / 20 mA (-12 V)
- Width: 12 HP
- Depth: 50 mm
- Joystick height: 70 mm
