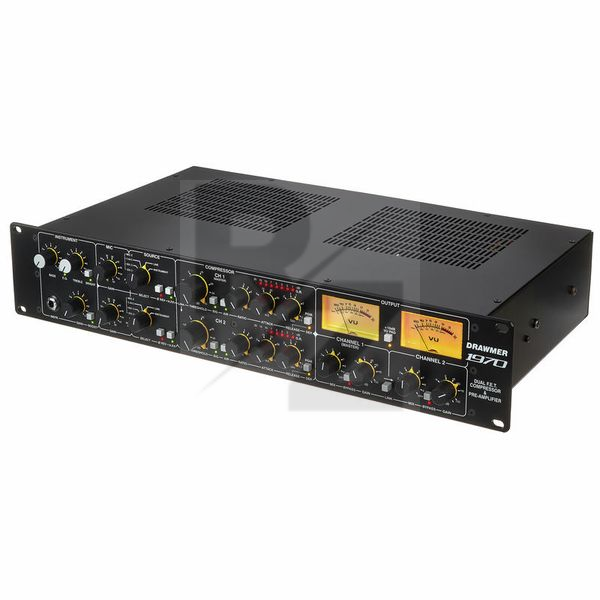

Drawmer 1970

Dual FET Compressor and Preamplifier

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Drawmer
Released in 2020
Average price : $1534
Two microphone preamps
Separate XLR inputs for line and microphone
DI input for instruments with EQ for bass and treble
True bypass of the compressor section
Standard controls like Threshold
Ratio, attack and release as well as an 8-stage LED display to show the level reduction per band
Backlit analog VU meter level displays with switchable +10 dB rescale mode
Noise-free switching on and off thanks to time-controlled relays in the outputs
Integrated linear power supply with low-interference toroidal
Transformer and voltage selection switch
Mic / Line connection: XLR balanced
Aux input: 6.35 mm jack, unbalanced
Input impedance line: 20 kOhm
Input impedance Mic: 200 ohms to 2.4 kOhm
Input impedance instrument: 2.2 MOhm
Mic ON: -130 dB
Maximum input level: +21 dBu
Output impedance: 100 ohms
Maximum output level: +21 dBu
Frequency response: 20 to 20,000 Hz, +/- 0.5 dB
Crosstalk: <-75 dB
Signal to noise ratio:> 93 dB
THD + N: 0.1% (0 dB)
Power supply: 115 or 230 V, 63 VA
Dimensions : 482mm x 88mm x 270mm
Weight : 4.2kg
