Drawmer 1974

Parametric 4-Band Equaliser with Vintage Sound

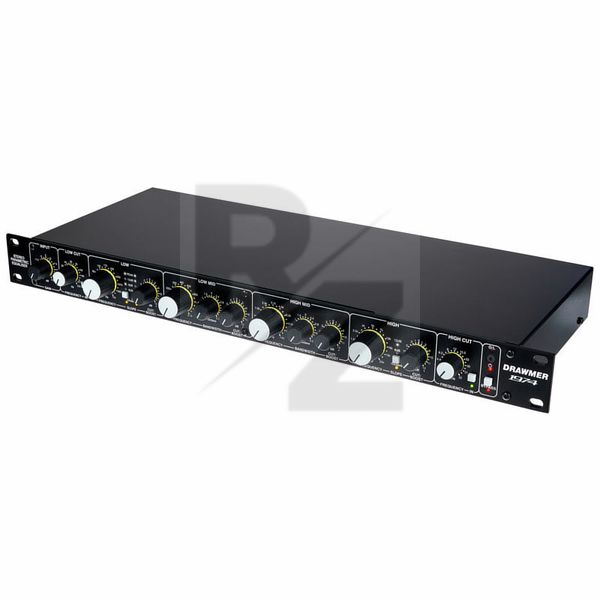

Image Drawmer 1974

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

2 years ago

Definitely worth it !

Sometimes you wonder, plugins maybe sound like analogue gear… Well, this is wrong ! If you are serious about what you do, buy the gear ! If you need an EQ, don’t pay 200 bucks for a plugin, save some more and buy this Drawmer EQ !

5 years ago

sweet sounding

im using it on channels to clean up or boost and on the masterbus in my beats. it sounds amazing and ive never experienced any plugin eq who sounds as good as this and its stereo, the cons would be the price and no 4+/ -10 switch, but then again the price is worth it. if you want to start with analog gear this would be the first box i would buy. very happy with it

5 years ago

Drawmer

After getting the 1974 I fell in love with the drawmer collection. This thing sounds amazing, even a 1dB boost widens and enhances your mix unlike a plug-in would. I purchased the 1976 and 1978 afterwards and I can't imagine mixing without them now. Would recommend!

Technical Data

  • Manufactured by Drawmer
  • Released in 2019
  • Average price : $1072
  • Classic sound control and transparency
  • Variable high and low pass filters for perfect exclusion of unwanted signal components
  • Input impedance: > 20k Ohm
  • Input level max.: +26 dBu
  • Output impedance: <100 Ohm
  • Output level max.: +26 dBu (10k Ohm load impedance)
  • Frequency response: 20 to 20000 Hz +/-0.2 dB
  • Distortion (THD+N) @ 1 kHz/ 0 dB: 0,007%
  • Crosstalk: -75 dB @ 1 kHz
  • Low cut frequencies: 10 to 225 Hz
  • Low: 35 to 700 Hz
  • Low slope: 6, 9, 12 dB
  • Peak
  • Low level: +/- 12 dB
  • Low-Mid frequencies: 55 to 21000 Hz
  • Low-Mid bandwidth: 0.33 to 3.3 octave
  • Low-Mid level: +/- 12 dB
  • High-Mid frequencies: 400 to 14000 Hz
  • High-Mid bandwidth: 0.33 to 3.3 octave
  • High-Mid level: +/- 12 dB
  • High frequencies: 1.2 to 20000 Hz
  • High slope: 6, 12 dB
  • High level: +/- 12 dB
  • High cut frequencies: 4 to 32 kHz
  • Power supply: 230V or 115V, 15VA
  • Dimensions : 482mm x 44mm x 202mm
  • Weight : 2.8kg
