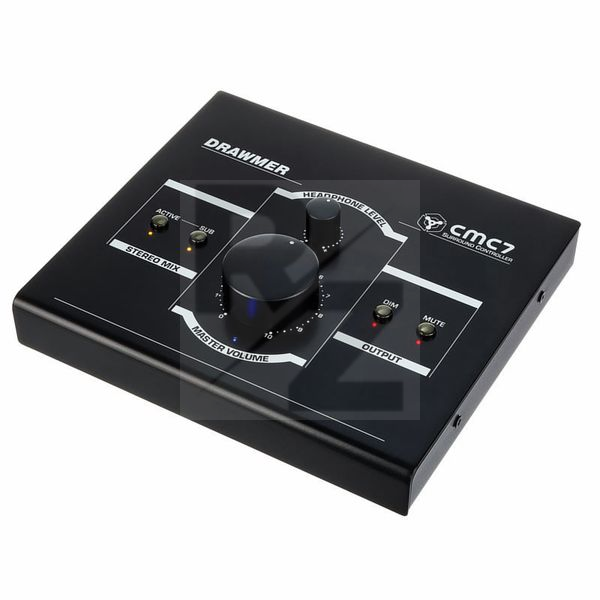

Drawmer CMC7

Compact Surround Monitor Controller

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Drawmer
Released in 2018
Average price : $652
Extremely low-noise and transparent circuit design
Input channels: 8 (DB-25)
Output channels: 8 (DB-25)
25-Pin D-Sub connectors with Tascam assignment
Mix-down switch for monitoring the surround mix in two-channel stereo with independent sub-switch for the LFE channel / sub-woofer
Independent headphone amplifier with individual level control with connection on the rear of the device
Kensington Lock
Input level (maximum): 21 dBu
Output level (maximum): 21 dBu
Dynamic range: 115 dB
Crosstalk: > 80 dB
THD+N: 0.001%.
Frequency response: 20 - 20,000 Hz (+/- 0.2 dB)
Phase response: 20 - 20,000 Hz (+/- 2 degrees)
Power supply: 100 - 240 V AC (external) / 15 V, 1A DC
Dimensions : 187mm x 45mm x 168mm
Weight : 1.1kg
Developed and manufactured by Drawmer in Great Britain
