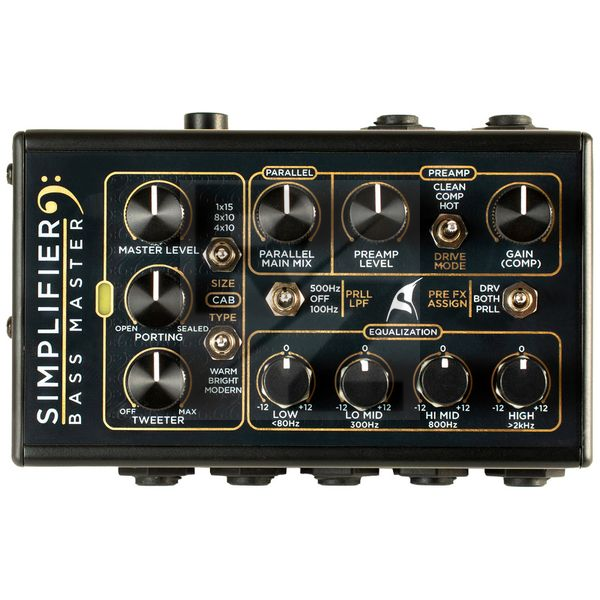

DSM & Humboldt Simplifier Bass Master

Effect Pedal for Electric Guitar

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by DSM & Humboldt
Everything you need to go directly into an FOH (Front of house) or recording mixer
Versatile pre-amp with three modes (Clean, Comp, Hot), Gain, Level and a four-band EQ
Parallel signal routing with selectable LPF (500 Hz, Off, 100 Hz)
Dual FX Loop (with Pre-Fx-Loop and Main-Fx-Loop) and a cabinet simulation with three voicings: 8 x 10", 1 x 15" & 4 x 10" with Type Selection and Resonance controls
LED: On
Input: 6.3 mm jack
Main output: 6.3 mm jack
Parallel output: 6.3 mm jack
DI parallel: XLR
DI main: XLR
Pre FX Send & Return: Two 6.3 mm jacks
Post FX Send & Return: Two 6.3 mm jacks
Aux input: 3.5 mm stereo jack
Headphones: 3.5 mm stereo jack
Power supply connector: Barrel connector 5.5 x 2.1 mm, centre negative
Power consumption: 100 mA
Dimensions : 115mm x 65mm x 55mm
Weight : 430g
Made in Chile
Preamp: Gain (Comp), Preamp Level
Parallel: Main Mix
Cab: Master Level, Porting, Tweeter
Equalization: Low, Low Mid, High Mid
Phones level
Preamp Drive Mode (Clean, Comp, Hot)
Parallel LPF: 500 / Off / 100 Hz
Pre FX Assign (Drv, Both, Parallel)
Cab size: Four 10" / eight 10" / one 15"
Speaker Colour: Warm / Bright / Modern
Out Main (Main / Cab / Bypass)
Out Parallel (Parallel/Thru)
Parallel Phase
Ground lift
