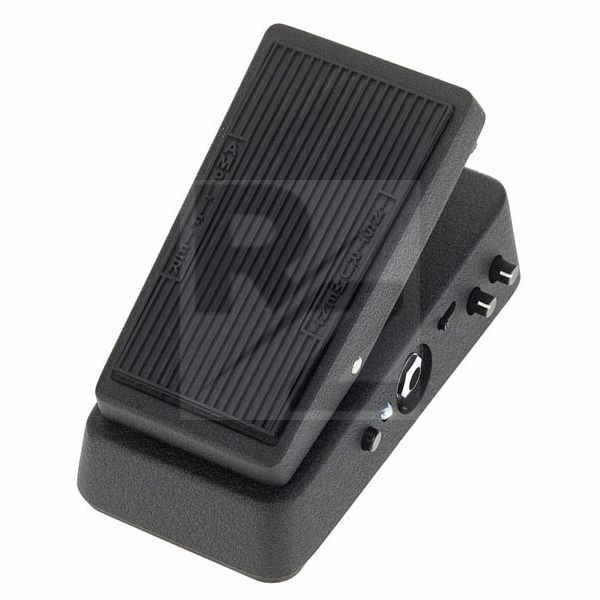

Dunlop Cry Baby Mini 535Q Auto Return

Effect Pedal for Electric Guitar

Image Dunlop Cry Baby Mini 535Q Auto Return

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

2 years ago

Love this pedal

Space saving, good sounding! Auto return works and is very nice on a wha pedal!!

4 years ago

Very well thought out and executed

I used to own the classic GCB95, where one could set the range by unscrewing the bottom and manually adjusting the gear. The 535q's controls offer a selection of different ranges, more easily. However, I haven't been able to find the ideal setting, yet.

The mini size is not a problem, even for larger-than-average feet when standing. When seating, it's even possible to only use one's toes. Positioning it on the board, as well as cabling around is so much easier.

The auto-return feature is what sets this pedal apart, in my opinion. Easy to engage, easy to disengage, impossible to get it wrong. My concern was whether, due to the auto-switch-off at the heel position, the pedal would accidentally switch off during a back-and-forth rocking motion; that's not the case, possibly due to a short, well-timed delay when switching off.

The adjustable boost setting is useful. I'd prefer the LED indicator to be red but, due to its position on the side, it's not a nuisance.

A knob to blend in the dry signal would be welcome.

The pedal feels sturdy and well-balanced. All elements look good and feel nice to the touch.

Due to the pedal normally resting at the heel position, it limits access to whatever is behind it.

Overall, this pedal is very well thought out, very well executed and would only leave my board to be replaced by an exact same one with an added blend knob.

Technical Data

  • Manufactured by Dunlop
  • Released in 2021
  • Average price : $226
  • Mini Wah
  • Auto-return switching function automatically activates/deactivates pedal
  • 4-Way frequency range selector (270 Hz - 1300 Hz / 320 Hz - 1650 Hz / 360 Hz - 1840 Hz / 420 Hz - 2100 Hz)
  • Adjustable boost up to +16 dB
  • Internal auto-return delay control controls how long the effect decays after deactivation
  • Half the size of a full-size Cry Baby Wah
  • Red Fasel inductor
  • Volume, Q, auto-return delay controls
  • Boost switch
  • Frequency range selector switch
  • Status LED
  • Metal housing
  • Input: 6.3 mm jack
  • Output: 6.3 mm jack
  • Power supply via 9V battery or optional 9V DC power supply (Dunlop ECB003) with 2.1 x 5.5 mm barrel connector, polarity (-) inside
  • Power consumption: 3 mA
  • Dimensions (L x W x H): 133 x 75 x 65 mm
  • Weight : approx. 570g
