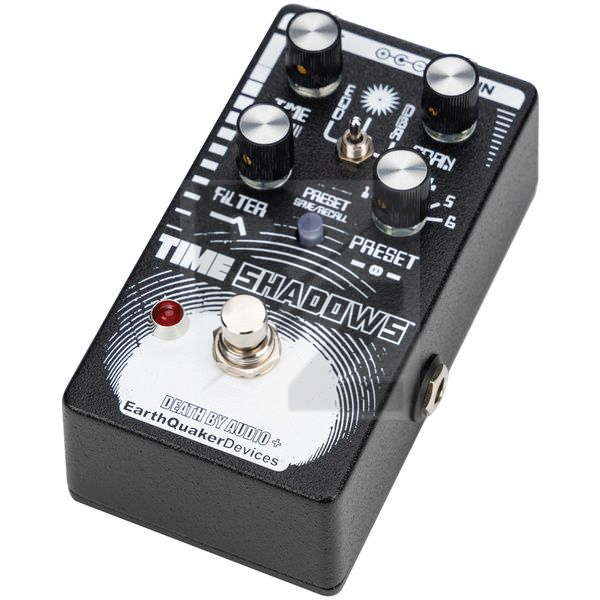

EarthQuaker Devices Time Shadows II DBA MultiDelay

Effect Pedal for Electric Guitar

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by EarthQuaker Devices
Subharmonic Multi-Delay Resonator
Collaboration between EarthQuaker Devices and Death by Audio
Effect pedal with three modes and the ability to store and recall six presets, as well as a user-assignable expression control
Two global operating modes: Live Mode, Preset Mode
Modes are indicated by the colour of the Save/Recall switch
Silent relay-based switching with Flexi-Switch technology
EQD Mode: the EarthQuaker Devices Mode is a pitch-morphing fuzz-delay filter with so much attitude that it's actually intimidating
DBA Mode: Death by Audio Mode is a multi-delay filter remorphinator that ranges from icy shimmers to cosmic space caves full of bouncing repeats@
True bypass
Controls for time, span, filter and preset
Mode switch
Save/Recall switch
Bypass footswitch
Status LED
Metal housing
6.3 mm Mono jack input / output
6.3 mm Stereo jack input for external control
Power supply via optional 9V DC power supply unit 2.1 mm x 5.5 mm barrel connector, centre negative
Battery operation not supported
Current consumption: 75 mA
Dimensions (L x W x H): 121 x 64 x 57 mm
Weight : 286g
Handmade in USA
