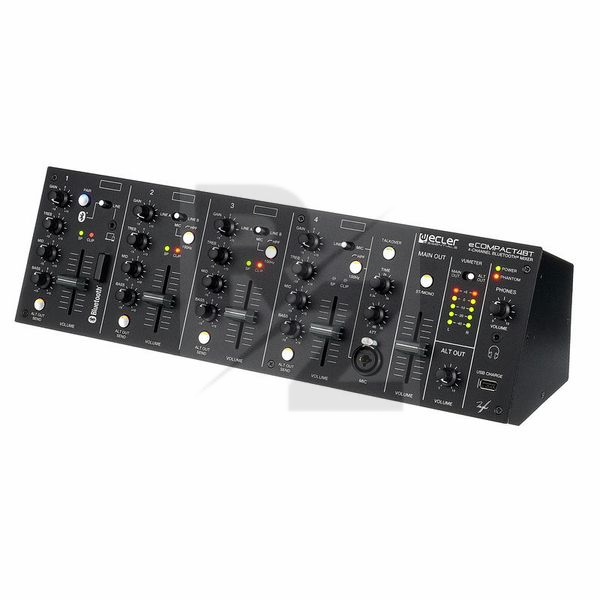

Ecler eCompact 4 BT

Technical Data

• Manufactured by Ecler
• Released in 2019
• Average price : $823
• A channel with talkover function with adjustable parameters
• Installation in 19" rack or use as a tabletop device
• 4 Microphone inputs, one of them on the front control panel with combo connection
• 48 V phantom power for the microphone inputs (selector switch on the rear)
• 6 RCA stereo line inputs as well as one stereo line input with mini-jack connection on the front control panel
• Class 1 wireless Bluetooth connection (under ideal conditions up to 25 m range)
• Source selector switch on each channel
• All microphone inputs with selectable high-pass filter (fc = 100Hz)
• All channels with 3-band tone control (highs, mids and lows)
• Indicator for signal presence and overload of the input signal on all channels
• 45 mm Fader
• Transmission to alternative output (ALT OUT) per channel
• Possibility to create a submix
• USP port for charging mobile devices
• Balanced main output (MAIN OUT)
• XLR connector
• Stereo / mono switch for the main output
• Signal indicator (LED) with selector switch for selecting the output signal to be displayed (MAIN OUT or ALT OUT)
• Alternative or submix output (ALT OUT)
• Unbalanced
• RCA connector
• Subwoofer or auxiliary output (SUB OUT)
• XLR connector
• Mono sum of the signal at the main output
• Low pass filter available at the SUB OUT output (fo = 150 Hz)
• Mini jack headphone output on the front panel
• Dimensions: 440 x 132 x 125 mm
• Weight : 3kg
