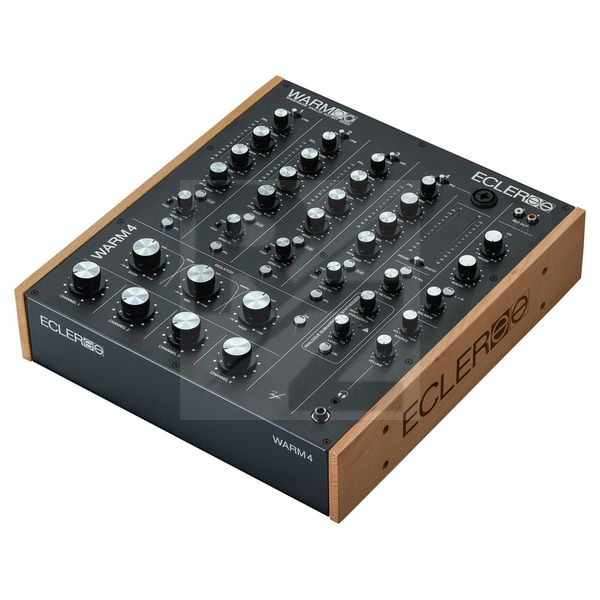

Ecler Warm 4

Technical Data

• Manufactured by Ecler
• Average price : $1706
• 4 Mixing channcels
• 3-Band Isolator Full Cut EQ
• 3-Band isolator (300 Hz and 4 KHz, -8 /+12 dB, 4th order 24 dB/oct)
• Analogue subharmonic synthesizer for subbass
• Frequency gain selectable per channel
• Max. output power without distortion: 21 dBV (23 dBu)
• FX send control and pre/post fader selector per channel
• FX return control and PFL
• High-quality Alps potentiometer with metal shaft
• Wooden side panels
• Dimensions : 340mm x 81mm x 372mm
• Weight : 5.3kg
• 4 Phono inputs
• 4 Line inputs
• 2 Microphone inputs
• XLR/RCA Master output
• XLR/RCA Booth output
• 6.3 mm Jack and 3.5 mm mini jack headphone output
