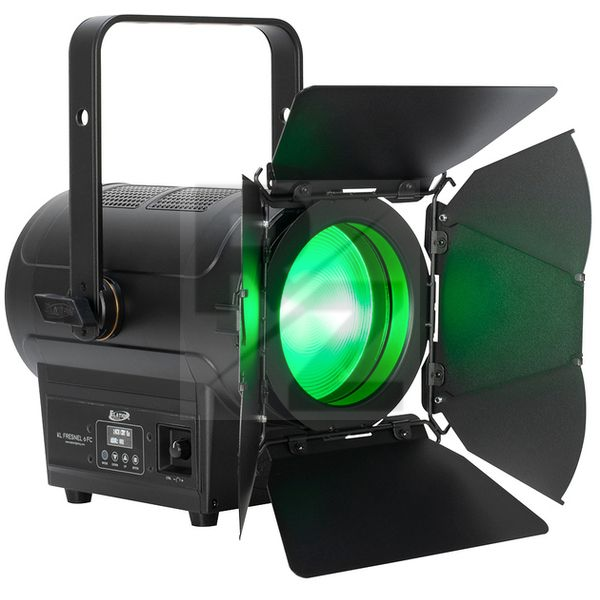

Elation KL Fresnel 6 FC

LED Fresnel spotlight with barn doors

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Elation
Light output: 11,000 lumens
RGBMA under the lens
Extended colour spectrum thanks to additional mint and amber LEDs
Manual adjustment of brightness and colour via jog wheel
Stand-alone programming
Selectable PWM frequency (900 - 25,000 Hz)
Variable dimmer curves
Virtual colour correction (2.400 - 8.500 K)
Green/magenta customisation
Virtual colour wheel
Display-Passwort
No DMX backup (Close, Hold, Auto Programme)
Software update via USB and DMX 512
5 V USB port for the power supply of external accessories
Includes rotatable 8-leaf barndoor, colour filter frame and mains connection cable
LED-Type: 220 W LED Engine
CRI 92
Colour mixing: RGBMA
Optics: Fresnel
Beam angle: infinitely variable 10° - 32°
Cooling: Fan
Temperature-controlled
Electronic shutter/strobe: 1 - 18 flashes/s
Dimmer: 0-100% linear, 8/16-Bit
Protocol: DMX 512-A (RDM)
Number of DMX channels: 1/6/9/11/14/18
DMX input and output: 5-pin XLR
Supply voltage: 100 - 240 V, 50/60 Hz
Power consumption: 1 A at 230V
Power input and output Power TR1
Housing: Die-cast aluminium
Dimensions: 34.4 x 27.2 x 39.8 cm
Weight : 7.3kg
