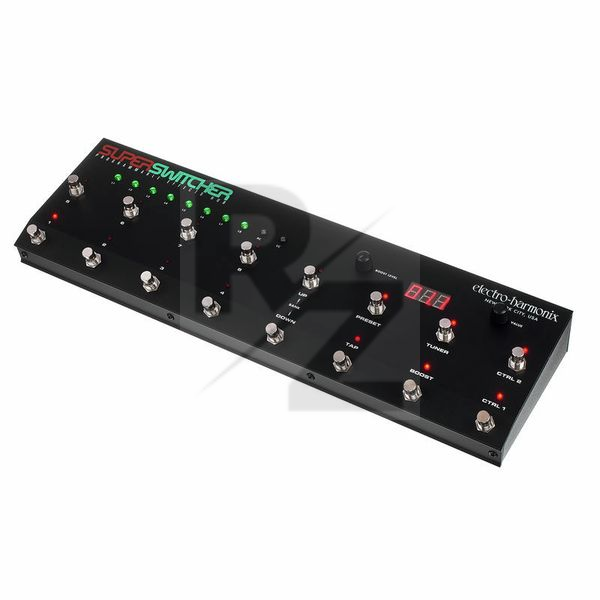

Electro Harmonix Super Switcher

Technical Data

• Manufactured by Electro Harmonix
• Released in 2019
• Average price : $457
• 8 FX loops (6 mono and 2 stereo)
• 128 Presets
• Tap foot-switch adjusts the BPM
• Can be configured to send/receive MIDI clock and send tap signals to output
• BPM can be global or per preset
• The tuner footswitch sends the input signal to the tuner and mutes the signal
• Foot-switchable gain boost on both channels
• Controls: Boost Level and Value
• LED: L1-8, PC, CC, 1-8, Tap, Boost, CTRL 1 and 2
• Display: Bank number
• Foot-switch: L1-8, PC, CC, 1-8, Bank Up / Down, Preset
• Tap, Tuner, Boost, CTRL 1 and 2
• Current consumption: 150 mA
• Power supply with a 9 V DC power supply unit (included in delivery)
• True Bypass
• Dimensions: (W x D x H) 483 x 152 x 64 mm
• Input: 6.3 mm Jack
• Stereo output: 2x 6.3 mm Jack
• 8x Loop Mono Send: 6.3 mm jack
• Loop 8 stereo / right send: 6.3 mm Jack
• Loop 7 and 8 stereo / right return: 6.3 mm Jack
• Loop Insert (Between Loop 5 & 6 - 2 x 6.3 mm jack)
• Tuner output: 6.3 mm Jack
• Power supply connection: Coaxial socket 5.5 x 2.1 mm, minus pole inside
• MIDI input and output
