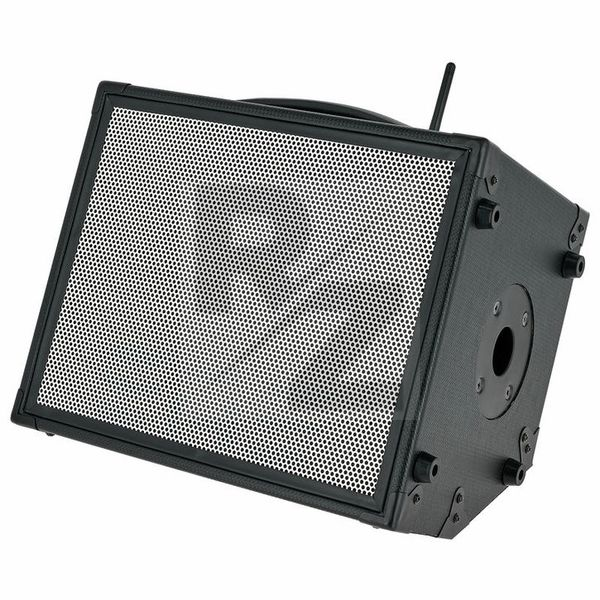

Elite Acoustics M2-6 Acoustic Amplifier

Technical Data

• Manufactured by Elite Acoustics
• Released in 2018
• Average price : $511
• Slanted housing for use as a monitor
• Bluetooth audio streaming
• With digital effects as well as mixing and mastering functions
• 4 Channels
• Power: 30 W
• Class D bi-amp
• Equipped with: 6.5" loudspeaker and 1" silk dome tweeter
• Bass reflex housing construction
• Frequency range: 70 - 22,000 Hz
• Controls, CH 1: EFX/AUX Send Level - Gain - Notch Filter - EQ - Mic/Instr Select - CH 2: Gain - EFX/AUX Send - CH 3/4: EFX Send Level - Master: Volume - EQ (Low, Mid High Knob), Effects Mix, Decay/Rate and Effects, AUX Level, Direct Out Level
• Switches at CH 1: Mute - Phase - EFX/AUX and Mix/Instr. Select
• Switches at CH 2: Mute - PAD - Master: EFX Bypass - Mono - 48 V Phantom Power
• Effects: Reverb - Echo - Chorus - Flanger
• Connections CH 1: Input Instrument (6.3mm Mono) - Line (6.3mm TRS) - Mic (XLR)
• Connections CH2: Line (6.3 mm TRS) - Mic (XLR) - CH3/4 Left/Right Stereo Input (6.3 mm TRS) - Global: AUX In (3.5 mm TRS) - Monitor Right Output (6.3 mm TRS) - Direct Out Left/Right (XLR) - AUX Send/Return (6.3 mm TRS) - Footswitch Effects Bypass (6.3mm TRS)
• Bluetooth
• USB charging port
• Approx. 6-8 hours playing time with fully charged battery
• 35 mm Speaker flange on the side
• Dimensions : 330mm x 279mm x 229mm
• Weight : 10.9kg
• Colour: Carbon Style Black
• Incl. 12 V power supply and car charger
• Made in USA
