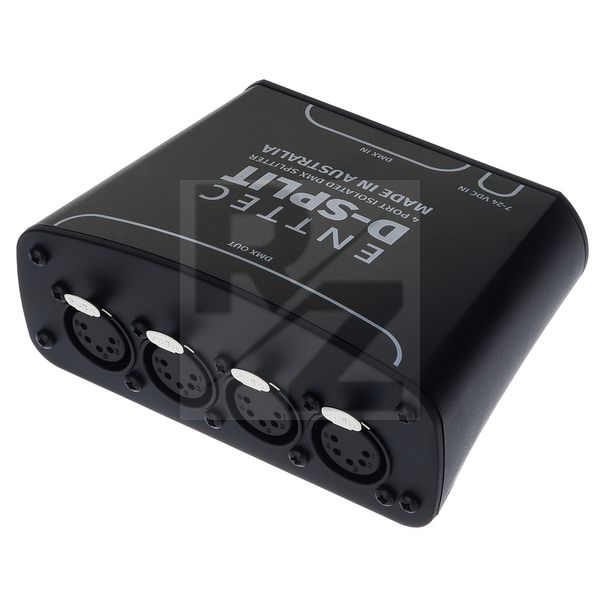

Enttec D-Split 4x5pin output

DMX Opto-Splitter

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Enttec
Released in 2022
Average price : $109
Lightweight and portable
1 DMX input: 3-pin and 5-pin plug for connecting to only 1 DMX signal
4 DMX outputs: 2x 3-pin + 2x 5-pin
All outputs are optically isolated (protected up to 1000 V)
DMX512-1990 compatible
Daisy-chain via input ports without using the output ports
LED indicators for power supply
Inputs: 1 x 3-pin XLR, 1 x 5-pin XLR
Output: 2 x 3-pin XLR, 2 x 5-pin XLR
IP protection class: IP20
Input/output protocol: USITT DMX512-1990
Max. channels: 512 (1universe)
Input voltage: 7 - 24 VDC
Max. current: 400 mA
Housing material: ABS plastic
Dimensions: 116 x 87 x 52 mm
Weight : 0.16kg
Incl. a power supply unit with UK/EU/S/AU adapter, TS35 DIN clip and 2 x fixing screws
