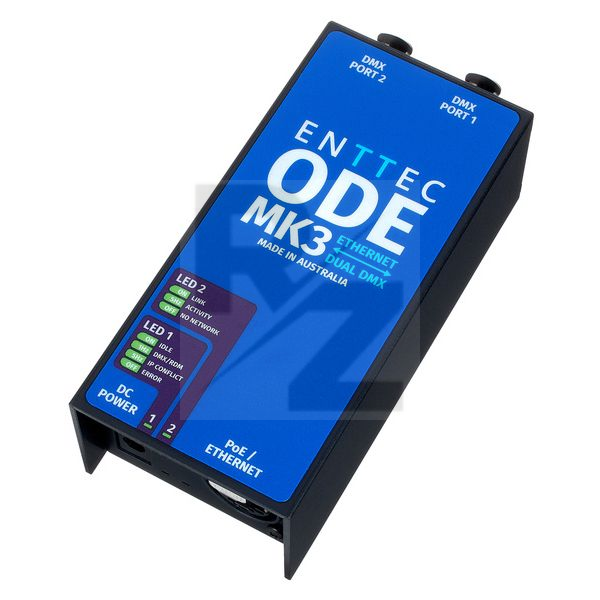

Enttec ODE Mk3
Power Over Ethernet DMX Interface
Latest User Reviews
3 years ago
Everything ENTTEC makes is gold.
I've purchased this node for use with QLC+ and it works an absolute treat. Recently I had a touring LD use it with ONYX and they were also impressed. The web interface is good and the documentation and support have been wonderful.
Technical Data
- Manufactured by Enttec
- Released in 2022
- Average price : $384
- Two universal bi-directional DMX / E1.20 RDM sockets XLR5
- PoE (Power over Ethernet) RJ45 port supports IEEE 802.3af (10/100 Mbps) and an optional DC 12-24v power input
- Secure 'EtherCon' connections
- Supports RDM over Art-Net & RDM (E1, 20)
- Support for DMX -> Art-Net (broadcast or unicast) / DMX -> ESP (broadcast or unicast) / DMX -> sACN (multicast or unicast)
- HTP/LTP merging support for up to 2 DMX sources
- Configurable DMX output refresh rate
- Intuitive device configuration and updates via a built-in web interface
- 'Current Port Buffer' allows the display of live DMX values
- Contents of delivery: ODE Mk3, ethernet cable, power supply unit with AU/EU/UK/US adapters
- Connections: 1x EtherCon port (RJ45)
- 2 x Bidirectional DMX (Female XLR5)
- 1 x Power input (DC Jack)
- eDMX Protocols: Art-Net, Art-RDM, sACN, ESP
- DMX protocols: USITT DMX512-A, ANSI E1.20 RDM
- DMX and RDM timing: Break time 300 ms
- Mark after break (MAB): 15 ms
- Max. channels: 2 Channels (1024ch)
- Max. refresh rate: 44 FPS
- Art-Net merging: 2 Sources
- Configuration software: Web browser
- Firmware updates: Web browser
- Input voltage: 12V to 24V DC
- Max. current consumption: 580 mA
- Max. power consumption: 7 W
- Power over ethernet (PoE): IEEE 802.3af
- Housing material: ABS plastic
- IP protection rating: IP20
- Dimensions: 129 x 58 x 40 mm
- Weight : 0.1kg
