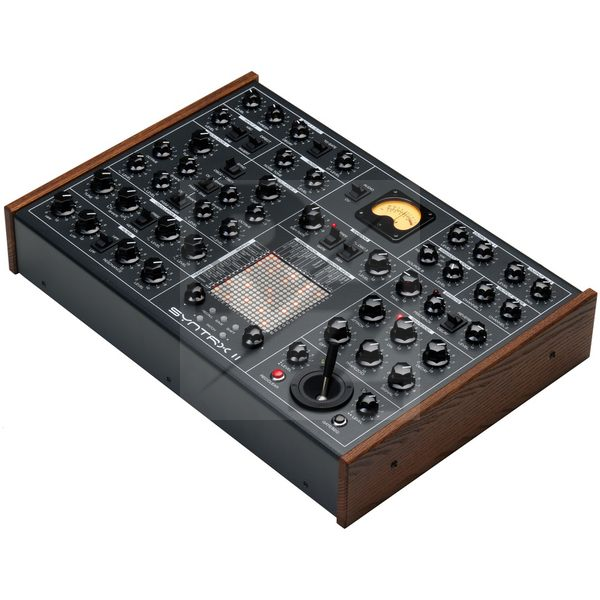

Erica Synths SYNTRX II

Analogue Desktop Synthesizer

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Erica Synths
Average price : $2352
2 VCOs with octave selector and fine tuning control
2 Mixable waveforms per oscillator (incl. waveshaping)
Synchronisation of VCO2 to VCO1 switchable
Modulation oscillator with 2 mixable waveforms and waveshaping
Noise generator with filter
Series-connected high-pass and low-pass filters with resonance
Synchronisable "sample & hold" section
Ring modulator
Instrument input with envelope follower
Second signal input switchable between line and microphone level
Function generator with AD, ASR and loop mode
2 VCAs with panorama control
On-board effect, switchable between reverb or delay
Assignable joystick with attenuator for X- and Y-axis, record function and manual gate button
Digitally controlled modulation matrix with 16 sources and 16 destinations
Memory for 254 patches
VU meter for displaying control voltage or audio level
2 CV inputs and gate-in (6.3 mm jack)
2 Audio inputs (6.3 mm jack)
2 Audio outputs and scope output (6.3 mm jack)
Stereo headphone output (6.3 mm jack)
MIDI In / Thru (DIN 5-pin)
Dimensions : 457mm x 309mm x 115mm
Weight : 4.05kg
Includes external power supply (12 V DC)
