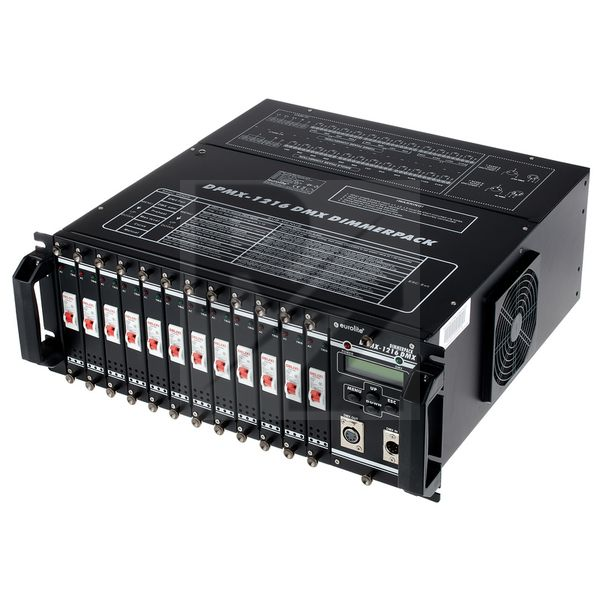

Eurolite DPMX-1216 DMX Dimmer Pack

12-channel Dimmer Pack With Up To 16 A Output Power Per Channel

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Eurolite
Released in 2022
Average price : $1083
Single-channel module design for fast and uncomplicated replacement of the individual dimmer modules
3-Phase or 1-phase power supply
Adjustable lamp preheating (0-50%) and limiter function
Curve function
Dim and switch operation assignable for individual channels
DMX fail function: digital input signals will be automatically checked for DMX signal errors
12 Integrated programmes with adjustable speed
Manual mode for channel control without an external controller
Synchronisation of multiple devices via DMX possible
Channel outputs on the rear of the unit via a terminal strip
Power supply: 230/380 V AC, 50 Hz
Protection type: SK I
Output power: max. 43470 W, max. 3680 W per each channel
Output current: max. 189 A
Power connection: Power supply binding post
Current output: binding post
Power output fuse per each channel: C 16 A fuse (resettable)
DMX connection: each 3 and 5 pole XLR In / Out built-in version
Control: analogue 0-10 V, stand-alone, DMX (12 channels)
Display type: LC display
Housing type: (19") 48.3 cm rack mount, 4 U
Dimensions : 48.3mm x 48.5mm x 17.8 cm
Weight : 18.80kg
Colour: Black
