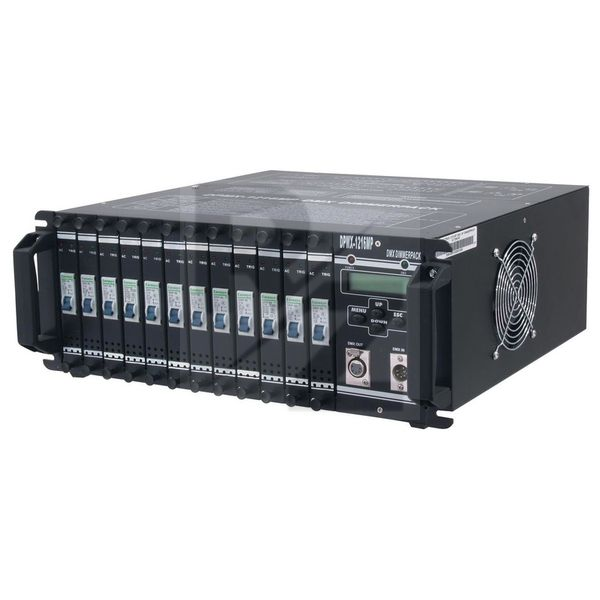

Eurolite DPMX-1216 MP DMX Dimmer Pack

12 x 16 A Dimmer

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Eurolite
Released in 2022
Average price : $1218
Service-friendly modules
Two 16-pole multipin outputs
Single-channel module design for a quick and easy replacement of individual dimmer modules
3-Phase or 1-phase power supply
Adjustable lamp preheating (0-50%) and limiter function
Curve function
Dim and switch operation assignable for individual channels
DMX fail function: digital input signals will be automatically checked for DMX signal errors
12 Integrated programmes with an adjustable speed
Manual mode for channel control without an external controller
Synchronisation of multiple devices via DMX possible
Channel outputs on the rear of the unit via 16-pole high-load sockets
Power supply: 230/380 V AC, 50 Hz
Protection type: SK I
Output power: max. 43470 W, max. 3680 W per each channel
Output current: max. 189 A
Power connection: Power supply binding post
Current output: 2 x 16-pole multipin (W) built-in version
Power output fuse per each channel: C 16 A fuse (resettable)
DMX connection: 3 and 5-pole XLR in / out each Built-in version
Control: analogue 0-10 V, stand-alone, DMX (12 channels)
Display type: LC display
Housing type: (19") 48.3 cm rack mount, 4 U
Dimensions : 48.3mm x 48.5mm x 17.8 cm
Weight : 18.60kg
Colour: Black
