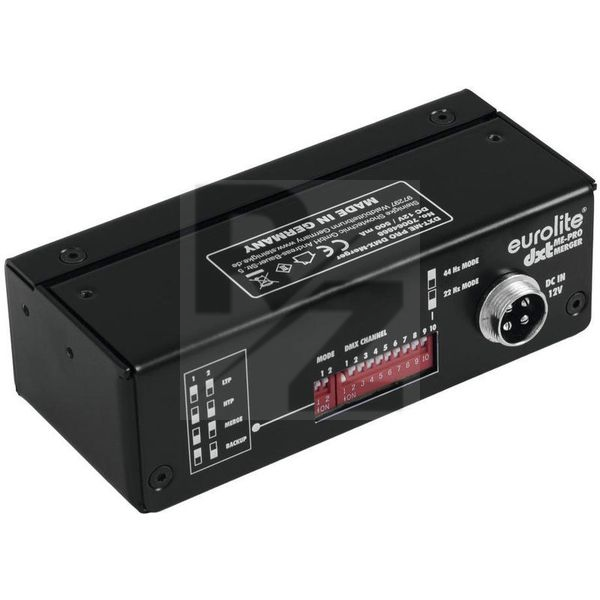

Eurolite DXT-ME Pro DMX-Merger

Technical Data

• Manufactured by Eurolite
• With 2 DMX inputs and 1 DMX output
• Enables the operation of 2 independent consoles on a DMX system
• Compact design in a sturdy metal housing for tough stage use
• DMX modes: LTP, HTP, Merge or Backup
• Input 2 can be provided with a start address (offset)
• LED display for valid DMX signals
• Selectable output frequency 22 Hz / 44 Hz
• Continuous DMX output
• Power supply via supplied power adapter
• Rackmount via separately available panel
• Made in Germany
• Power supply: 12 V DC, 1 A via supplied power supply
• Power consumption: <1 W
• DMX512 output: 3-pin XLR chassis-mounted installation coupler
• DMX512 input: 2x 3-pin XLR built-in connector
• Dimensions (L x W x H): 130 x 70 x 41 mm
• Weight : 400g
