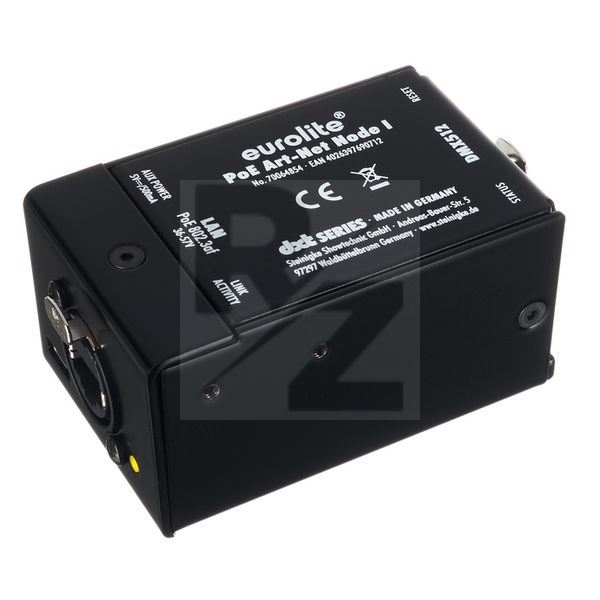

Eurolite DXT PoE Art-Net Node I

Art-Net Interface for Controlling 512 DMX Channels

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Eurolite
Released in 2022
Average price : $174
etherCON network socket with PoE
Power supply via 48V PoE switch/PoE injector (802.3af) or 5V USB-C port
Input and output of up to 512 DMX channels
Also supports the Light Captain and Light'J apps
The online fixture library of the apps is constantly updated and already contains more than 300 fixtures from Eurolite and Futurelight - new fixture profiles can be easily created via editor
DMX output frequency: 40 Hz, 30 Hz or 20 Hz
ArtDMX reception via broadcast or unicast
Configuration via website or Art-Net
Setting options: IP address / subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe as well as DMX refresh rate and DMX input/output via website
Sturdy metal housing
Power supply: 5 V DC 500 mA, 37-56 V DC
Protection class: IP20
Power connection: Power supply via USB C (W) built-in version Power connection cable for USB A mains connection (included), power supply via RJ-45 (W) built-in version
Dimensions : 8mm x 5mm x 4 cm
Weight : 290g
