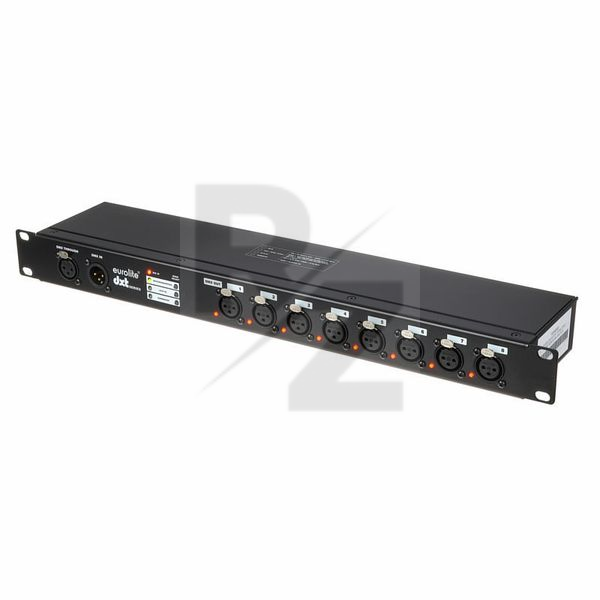

Eurolite DXT-SP PRO DMX RDM 3pol XLR

PRO DMX RDM Splitter

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Eurolite
Released in 2018
Average price : $365
DMX distributor for splitting a DMX input signal into 8 DMX outputs
Input and loop-through output are doubled on the front and rear and connected in parallel
Supports RDM for bidirectional communication over the DMX line
Switchable filter mode for filtering RDM data prevents problems when operating with devices without RDM support
Bypass function for easy processing of DMX-like signals from older devices
Output frequency selectable: 22/44 Hz
DMX failure mode selectable: Hold, Blackout, Zero
Switchable terminating resistor
Power supply via supplied plug-in power supply unit
XLR built-in coupling (Neutrik)
Rack mounting with 1 U
Dimensions (L x W x H): 483 x 100 x 41 mm
Weight : 1.94kg
Made in Germany
2 DMX512 Inputs: 3-Pin XLR male connector (Neutrik)
2 DMX Loop-through outputs (parallel): 3-Pin
8 DMX512 Outputs: 3-Pin XLR female connector (Neutrik)
Outputs galvanically isolated
Each DMX output with independent driver and status display
Each DMX output can be reconnected to up to 32 DMX devices
