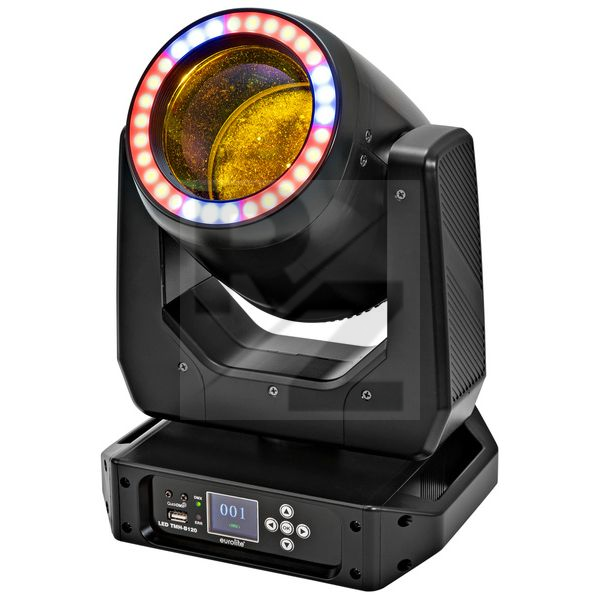

Eurolite LED TMH-B120 Hypno MH Beam

Technical Data

• Manufactured by Eurolite
• One 120 W COB (Chip-on-board) warm white (CW) LED
• 30x 0.2 W SMD 5050 3-in-1 TCL RGB (homogenous colour mixing) LEDs
• Positioning within 540° PAN, 240° TILT
• Motorised focus
• Frost filter
• 8-fold rotating prism
• Dimmer
• Beam effect
• Colour wheel with seven dichroic colours and open, semi-colours can be selected
• Rainbow effect with variable speed in both directions
• Gobo wheel with static gobos: 13 gobos and open, shake effect
• Four internal show programmes
• Device cooling via fan in the base and head
• Control via stand-alone, sound-control via microphone
• 21 DMX channels
• Quick DMX via USB (optional)
• Master/Slave function
• Flicker free
• DMX failure modes: Hold, zero
• Dispersion angle: 2º
• Multi-colour OLED display
• Two sturdy handles
• Four rubber feet
• Power input and output for easy interconnection of up to eight units
• Auto position correction (feedback)
• Exact positioning (16-bit resolution)
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 170 W
• IP protection rating: IP20
• Protection class: SK I
• Power connection: Power Twist In / Out
• DMX connection: XLR 3-pin In / Out
• Dimensions : 26mm x 23.5mm x 37.5 cm
• Weight : 6.95kg
• Includes Omega bracket
