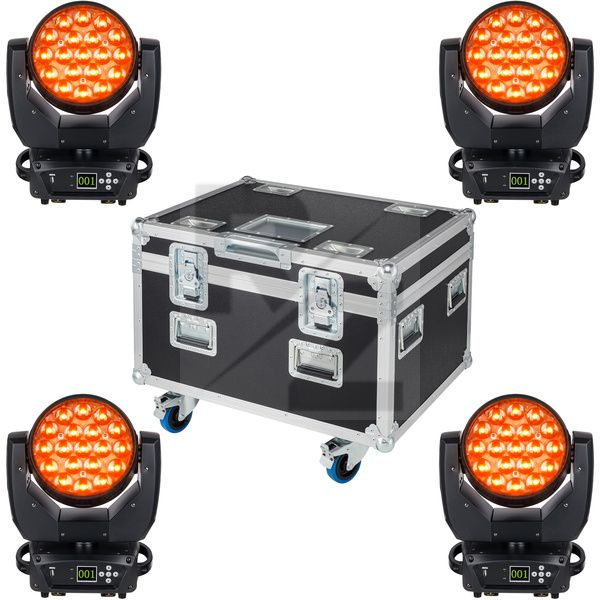

Eurolite LED TMH-X4 Zoom Wash Tour Pack

Technical Data

• Manufactured by Eurolite
• Average price : $2902
• Transport Case with Swivel Castors
• Suitable for 4 x Eurolite LED TMH-X4 Zoom Wash Moving-Head
• 2 Accessory compartments
• Made from 9.5 mm birch Multiplex
• Aluminium profile frame: 30 mm
• 8 Folding handles
• 1 Edge-mount handle
• 2 Locking hinges
• 2 Butterfly latches
• 4 Swivel castors, 2 with brakes
• Max. Load capacity: 100 kg
• Device compartment: 32 x 27 x 40 cm
• Accessory compartment: 10 x 26.5 x 40 cm
• Interior dimensions (W x D x H): 75.5 x 55.5 x 40 cm
• Exterior dimensions (W x D x H): 88 x 61 x 58.5 cm
• Weight : 35.10kg
• Colour: Black laminated
• Zoom Wash Moving Head
• 19 x 15 W RGBW LEDs (4in1)
• Three separately controllable LED segments
• 540° PAN and 270° TILT
• DMX control (16 or 24 channels)
• Auto and music mode
• Motorised zoom with 1-25
• Control board with colour LCD
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 225 W
• Protection class: IP20
• Power connection: Power Twist In/Out
• DMX input and output: XLR 3-pole
• Dimensions : 30.5mm x 40.0mm x 20.0 cm
• Weight : 8.20kg
