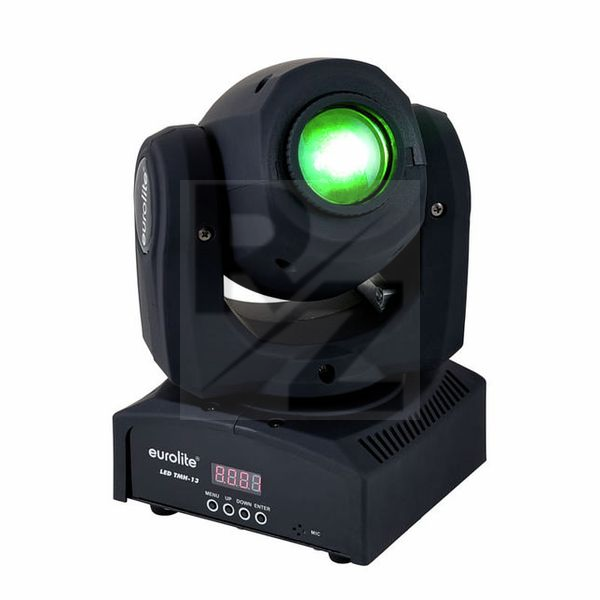

Eurolite TMH-13 Moving-Head Spot

Technical Data

• Manufactured by Eurolite
• Released in 2015
• Average price : $211
• Flicker-free projection
• 9 or 11 DMX channels selectable
• 7 Dichroic colours plus white
• Rainbow effect with variable speed
• Gobo wheel with 7 static gobos plus open
• Electronic dimmer
• Strobe effect with variable speed
• Internal programs
• Built-in microphone for music triggering
• Sensitivity adjustable
• Fan-cooled
• Manual focus
• Exact positioning via 16-bit resolution of the PAN/TILT movement
• Positioning within 540° PAN and 200° TILT
• DMX-controlled operation or stand alone operation with master/slave function
• Control board with 4-digit LED display for adjusting the DMX-starting address
• PAN/TILT reverse
• Program
• Reset
• Switching power supply for voltage between 100 and 240 Volts
• DMX512 control via every common DMX controller possible
• Power supply: 100-240V AC, 50/60Hz
• Total power consumption: 30 W
• DMX control channels: 9 / 11
• DMX 512 connection: 3-Pin
• XLR sound-control: With built-in microphone
• Colour wheel: 7 Colours and open
• Static gobo wheel: 7 Gobos and open
• Number of LEDs: 1
• LED type: 10 W, white, beam angle: 13°
• Maximum PAN: 540°
• Maximum TILT: 200°
• Dimensions (L x W x H): 160 x 158 x 280 mm
• Weight : 2.7kg
• Shipping weight: 3.30 kg
• Satisfies eco-design requirements: Yes
• Special product: Not suitable for room lighting in households
• Usage: Lighting for show effects
