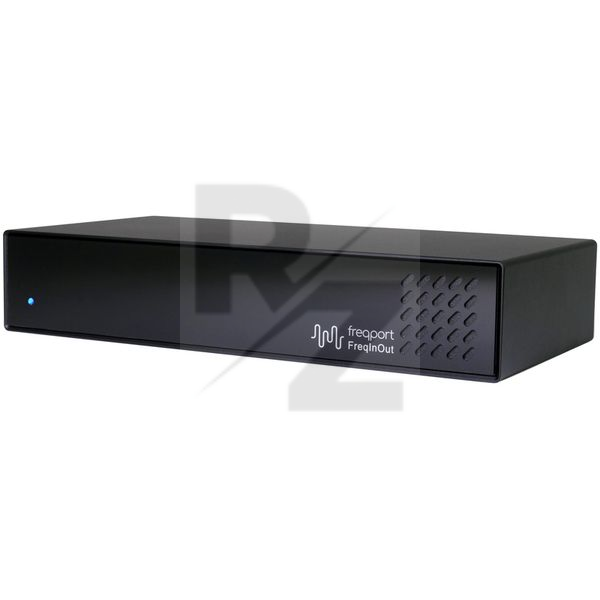

freqport FreqInOut F01

4-Channel Analogue Patchbay with Plug-in Integration

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Freqport
Enables the integration of analogue outboard devices into the preferred DAW
Simple connection via USB-C
For sound engineers and producers who use outboard equipment or want to process several signals simultaneously
4x Mono in/out or 2x stereo in/out or 2x mono in/out and 1x stereo in/out
Nominal level: -10dBV to +4dBu
Latency-free hardware routing matrix
M/S mode selectable
Audiophile ESS digital converter
32 Bit / up to 192kHz
Conversion dynamics: 120dB DAC, 116dB ADC
4 x Line inputs: 6.3 mm jack, balanced
4 x Line outputs: 6.3 mm jack, balanced
USB-C connection
Up to two F01s can be connected and operated simultaneously
1" OLED display on the back and status LED on the front
Compatible with the most popular DAWs (Mac and PC)
Supported plugin formats: VST3, AU
Robust metal housing
Power supply: USB-C (5W) or optional power supply unit (DC, 12V 1A)
Dimensions : 220mm x 105mm x 43mm
Weight : 810g
