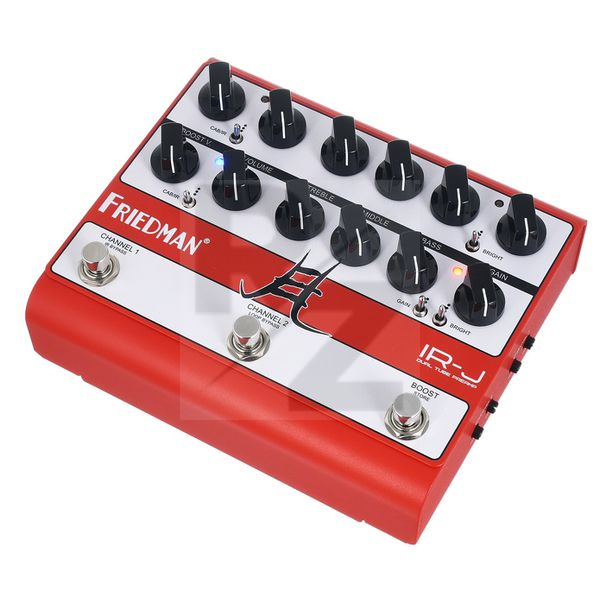

Friedman IR-J Jake E Lee Sign. Preamp

Tube Pedal Preamp for Electric Guitar

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Friedman
Channels: 2
Two fully independent, foot-switchable channels
Based on Friedman's legendary JEL-100 and JEL-20 Jake E Lee signature amp designs, which are based on Dave's modified 800/PLEXI circuits
Two independent TS-style boosts with separate volume and tone controls
DSP IR speaker/power amp simulation sends studio-quality mic'd speaker sound to the DAW or mixing console
Tubes: 2 x 12AX7
Controls: per channel: Gain, Bass, Middle, Treble, Volume, Boost Volume, Ch. 1 Boost Vol & Tone (Trimmer), Ch. 2 Boost Vol & Tone (Trimmer)
Switch: CAB/IR
Series effects loop
Input: 6.3 mm jack
Send: 6.3 mm jack
Return: 6.3 mm jack
Balanced output: 6.3 mm stereo jack
Headphones: 3.5 mm stereo jack
MIDI: 5-pin
USB
Power supply connector: Barrel connector 5.5 x 2.1 mm, centre negative
Power consumption: 800 mA
Power supply via 12 V DC power supply (included)
Dimensions : 165mm x 140mm x 58mm
Weight : 0.7kg
Made in USA
