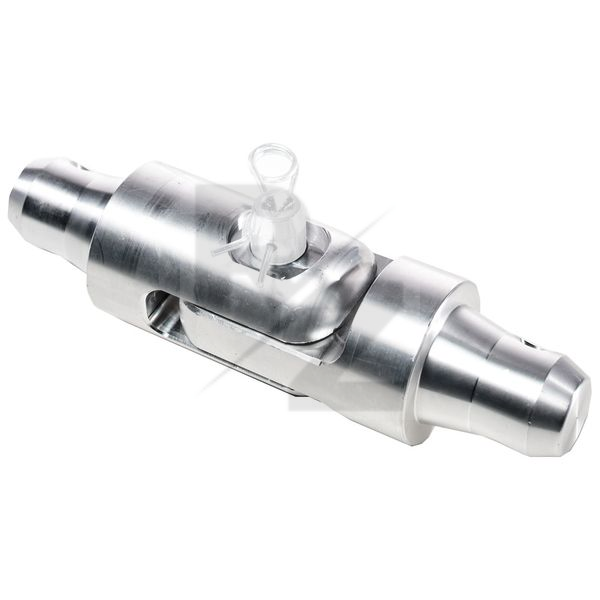

Global Truss 5029L-V Hinge Element Left
Hinged Element Left
Technical Data
- Manufactured by Global Truss
- Left model
- for F31 - F45 trusses
- Stronger version of the hinged element, as the cone is not screwed on here
- Serves as an erection aid for truss towers in ground support systems
- The designation "L" for left and "R" for right indicates the position of the cones in relation to the erection direction
- Distance: 105 mm
- Smallest angle: 80°
- Material: Aluminium solid material
- Dimensions: 200 x 50 x 50 mm
- Weight : 0.90kg
