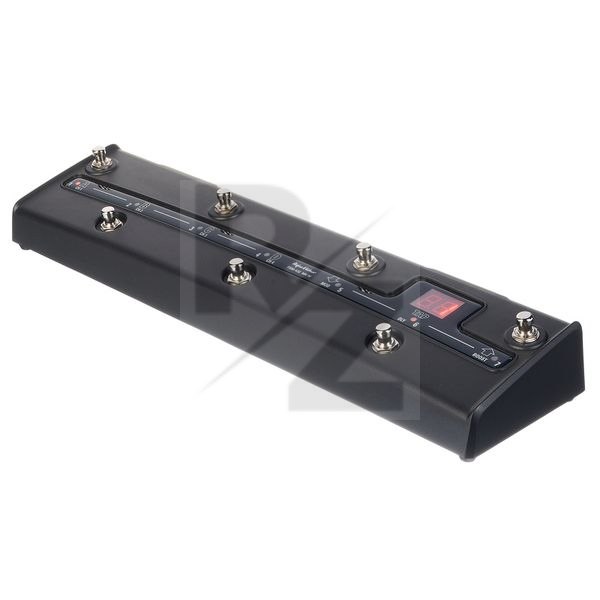

Hughes&Kettner FSM 432 MK IV

Name: FSM 432 MK IV
Brand: Hughes&Kettner
Price: 216 USD
Rating: 93 (3 reviews)

Footswitch for Guitar Amplifier

93/100

based on 3 reviews.

Write your own review

2 reviews

1 review

no review

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

1 year ago

All I will ever need

It controls all channels and preset on all H&K Tubemisters and Tubemasters

2 years ago

Built like a Tank!

It's very high build quality and does the job as it's supposed to do! You can step on it and be sure it stays flawless during your gigs.

The fact that the power is supplied with the including cable is very nice feature, so no need to bother finding a suitable power supply!

2 years ago

Love the product, QC a little lacking

So I love this board. It really opens up channel switching and makes it much easier to move from one tone you love to another without fiddling on your phone. I have to knock points off for quality control though, button 7 was stuck down when I received it and it still sticks if I step on that one with any force. I am hoping deoxit will clean this up but I may have to return it if it turns out the issue is with the spring.

Technical Data

Manufactured by Hughes&Kettner
Released in 2022
Average price : $216
Suitable for Hughes&Kettner Grandmeister 36/40,Tubemeister 36/40 and Black Spirit 200 Head/Combo
128 Memory locations
Tap Delay
Stomp box mode
2 Connections for expression pedal or 1-way switch
Direct 7-mode, in addition to preset mode and stomp box mode
In preset mode, the controller inputs can now be assigned individually per preset
In stompbox mode, the controller inputs can be configured globally - independent of preset mode
Sounds can be copied in Direct 7 mode
Direct 7 mode: "Tap Delay" function can be used via button on controller input
Firmware update (via MIDI socket) possible
Facelift of the housing: slimmer, more compact shape with straight edges for improved implementation in existing pedal boards
Power supply: +23V via MIDI cable for Hughes&Kettner units
Power consumption: @ 23 V / 50 mA @ 9 V / 125 mA
Ext. Plug-in power supply 9 - 15 V (AC/DC) / min. 250 mA
CTRL inputs: 2 connectors for expression pedal or single footswitch: 2 x 6.3 mm stereo jacks
MIDI input: 5-pin MIDI DIN socket
MIDI output/input: 7-pin MIDI-DIN socket with internal power port and MIDI-IN
Dimensions : approx. 435mm x 66mm x 118mm
Weight : approx. 1.68kg
Incl. 7-pin MIDI cable
