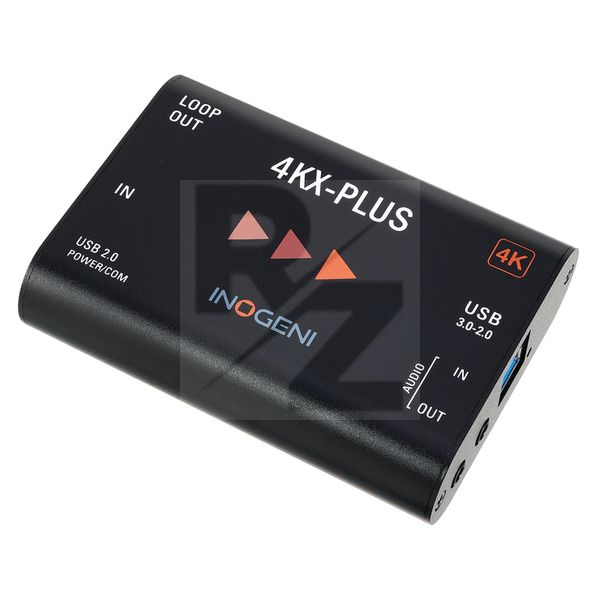

Inogeni 4KX-PLUS HDMI-USB3.0 Converter

Technical Data

• Manufactured by Inogeni
• Released in 2022
• Average price : $901
• Converts UltraHD signals to USB 3.0
• With HDMI loop function as well as external power for BYOM applications
• Connects HDMI cameras, video sources or CODECs to a PC or laptop
• Works with any virtual meeting room software that uses USB cameras and microphones, e.g. Microsoft Teams, Zoom, Google Meet or BlueJean
• Compatible with USB 2.0 (Hi-res MJPEG)
• Compatible with Cisco Webex Room
• HDMI capturing to USB 3.0
• Handles signals up to Ultra HD 4K (3840/4096 x 2160) at 30 fps and 1080p at 60 fps
• Support for HDMI audio
• Analogue audio I/O
• Digital fluid technology: Internal frame buffer maximises frame rate
• Hardware-based colour space and sampling conversion
• Automatic scaling and frame rate conversion (no UHD upscaling)
• Image controls: Brightness, contrast, saturation and hue
• Supports multiple devices on the same computer
• Compatible with Windows, Mac OSX, Linux and Android
• Power via external adapter or USB 2.0 (included)
• Dimensions: 9.9 x 7.4 x 1.9 cm
• Weight : 140g
• No additional drivers required
• Windows 7 or higher (32/64-bit)
• Mac OSX 10.10 or higher
• Linux (kernel v2.6.38) or higher
• Runs with any software compatible with DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation
• Input: 1x HDMI 1.4a
• Resolutions: 4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960,1280x800, 1024x768, 800x600, 640x480
• Frame rates: 60; 59.94; 50; 30; 29.97; 25; 24; 23.98 Hz for all resolutions except 4K (30Hz max.)
• Colour space: RGB, YCbCr, 4:4:4 and 4:2:2 (4K=RGB)
• Sampling rate: 297 MHz
• Embedded audio: Ch 1&2 48kHz LPCM
• Loop output: 1x HDMI 1.4a (resolution the same as input)
• Output: 1x USB Type-B (USB 3.0/2.0)
• Codec: YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0
• MJPEG for USB 2.0
• 1x 4KX-PLUS
• 1x USB 3.0 adapter cable (type A to type B) 90 cm
• 1x USB 2.0 adapter cable (type A to mini B) 180 cm (for power supply)
• 1x USB power supply unit with adapters (CE, US, AUS, UK)
