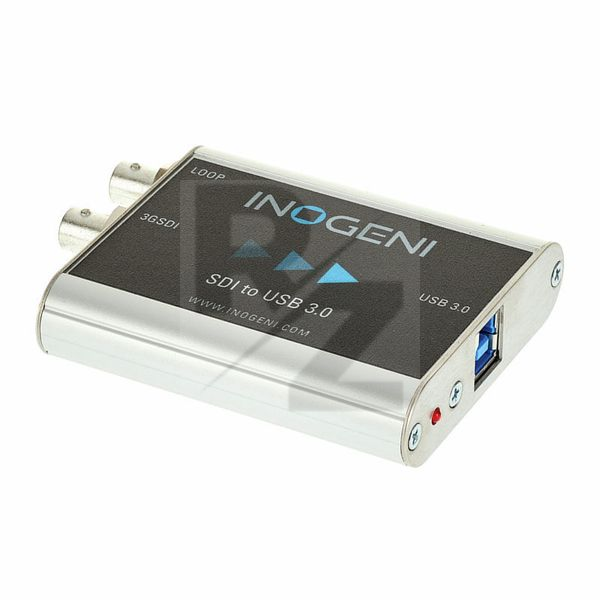

Inogeni SDI-USB 3.0 Converter

SDI to USB 3.0 Converter

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Inogeni
Released in 2020
Average price : $677
Record 3GSDI to USB 3.0
Direct Show compatible
UVC compliant
Embedded audio extraction and output as two-channel LPCM
Digital Fluid Technology - Internal image buffers maximise the frame rate with any PC
Hardware-based colour space and sampling conversion
Automatic scaling and frame rate conversion (UHD upscaling is not supported)
Customisable video processing functions
Image control: Settings for brightness, contrast, saturation and hue
Supports multiple devices on the same PC
Power supply via USB 3.0 connection
Compatible with Windows, Mac OSX, Linux and Android
USB power supply: 5 V / 530 mA
Dimensions: 81 x 74 x 19 mm
Weight : 139g
Includes USB 3.0 cable
1x BNC (3GSDI input)
1x BNC (3GSDI Active Loop Out)
Video resolutions: 1080p59.94 / 60/50 (SMPTE 425M Stufe A / B), 1080i (SMPTE 274M), 720p (SMPTE 296M), SD (SMPTE 259C)
Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz
Colour space: 4: 2: 2
Sampling rate: 148.5 / 148.35 MHz
1x USB 3.0
Codec: YUY2 4: 2: 2 8-Bit
