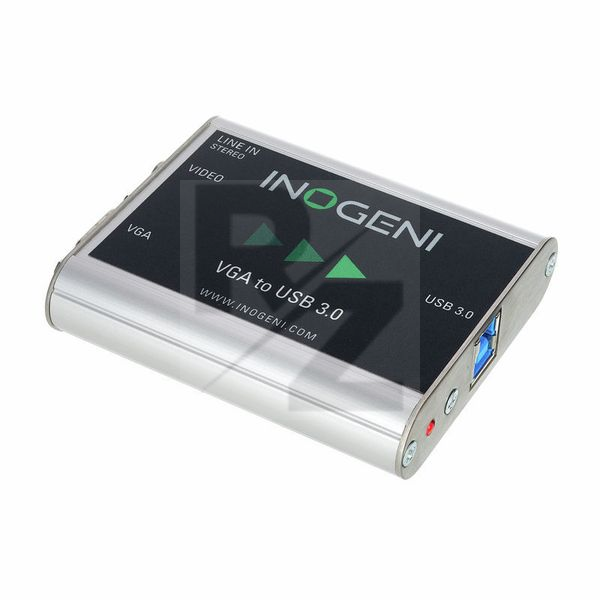

Inogeni VGA to USB 3.0 Converter

Signal Converter

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Inogeni
Released in 2020
Average price : $474
VGA/component/CVBS and audio recording to USB3.0
Direct Show compatible, as UVC compatible
Digital Fluid technology - internal frame buffers maximise frame rate with any PC
Hardware-based colour space and sampling conversion
Automatic scaling and frame rate conversion
Customisable video processing functions
Picture control: brightness, contrast, saturation and hue adjustments
Supports multiple devices on the same PC
Power supply via USB and 3.0 port
Compatible with Windows, Mac OSX, Linux and Android
Includes USB 3.0 cable
Inputs: 1x HD15 (VGA/component) / 1x RCA (NTSC/PAL) / 1x 3.5 mm jack (line stereo audio)
Video resolution: 1080p, 720p, 480p, 576p, 1600x1200, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480, NTSC, PAL and more.
Frame rates: Up to 60 Hz, all formats
Colour space: RGB
Sampling rate: 165 MHz
Embedded audio: Analogue stereo, line level
Output: 1x USB 3.0
Codec: YUY2 4:2:2 8-bit
Audio: 2-channel LPCM audio 48 kHz
Compatible operating systems: Windows 7 and above (32/64-bit) / Mac OSX 10.10 and above / Linux (kernel v2.6.38) and above.
Host requirements: USB 3.0
USB power supply: 5 V, 680 mA
Dimensions: 81 x 74 x 19 mm
Weight : 126g
