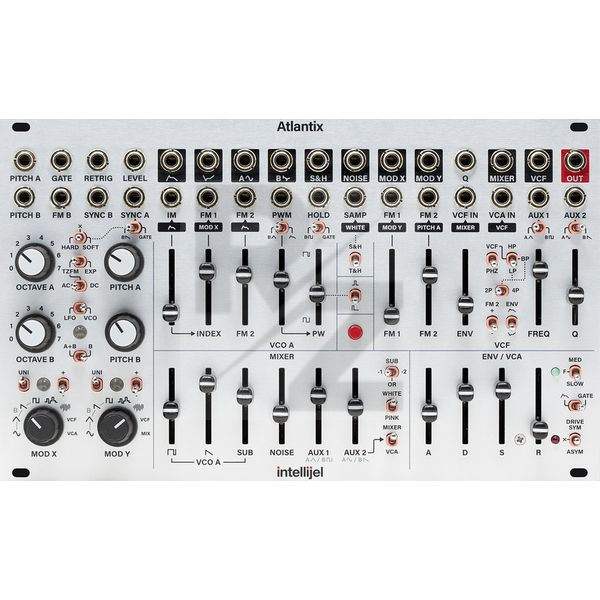

Intellijel Designs Atlantix

Eurorack module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Intellijel Designs
Analogue subtractive synthesizer voice
2 VCOs with octave selector switch and pitch control
VCO A with Thru-Zero FM including index, pulse width modulation and hard/soft sync
VCO B with linear FM, Hard Sync and switchable VCO/LFO mode
Multimode filter with resonance and 6 modes (2-pole low-pass, 2-pole band-pass, 4-pole low-pass, 4-pole band-pass, 4-pole high-pass and phaser)
Noise generator and sub-oscillator
6-Channel Mixer
ADSR envelope with 3 selectable time ranges
2 Modulation buses with 8 sources each
Sample & Hold modulation source
32 Inputs and outputs for CV, gate and audio signals
Current requirement: 140 mA (+12 V) / 138 mA (-12 V)
Width: 42 HP
Depth: 25 mm
