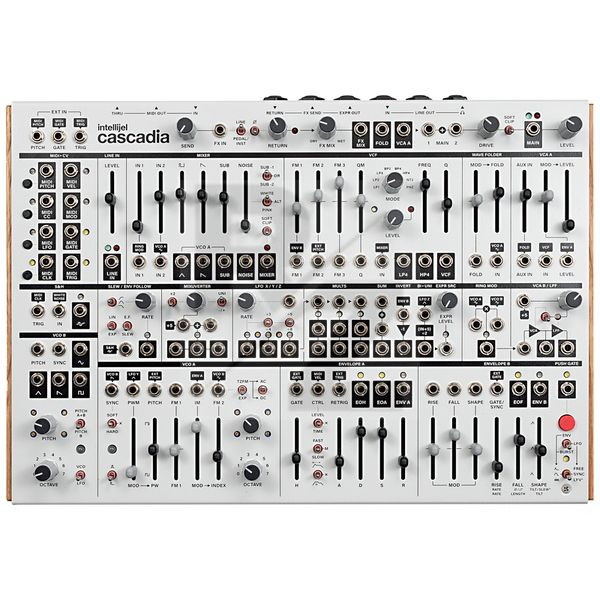

Intellijel Designs Cascadia White

Technical Data

• Manufactured by Intellijel Designs
• Two analogue oscillators, each with controls for coarse and fine tuning, sync input and 4 waveforms (sine, triangle, sawtooth and square)
• VCO A with selectable Through-Zero FM, modulation index VCA, PWM and sub-oscillator
• VCO B with switchable LFO mode and selectable pitch CV source
• Noise generator (white noise, pink noise, 4 digital variants)
• 6-Channel mixer with switchable soft clipping, channels normalised to VCO A and ring modulator
• Line input with gain control for external signals
• Multimode filter with 4 CV inputs and 8 selectable modes (6 dB / 12 dB / 24 dB low-pass, 12 dB / 24 dB band-pass, 24 dB high-pass, notch and phaser)
• Wavefolder
• VCA A with 2 inputs (normalised to wavefolder and VCF)
• VCA B with switchable lowpass gate mode
• Ring modulator
• Sample & Hold circuit
• ADSR envelope with 3 switchable time constants, hold phase and retrigger input
• Function generator with gate button, adjustable characteristic curve and 3 operating modes (envelope, LFO, burst generator)
• 3-Channel triangle LFO
• Slew Limiter and Envelope Follower
• Mixuverter for mixing, attenuating and inverting signals
• Utility section with multiple, summing, inverter and unipolar/bipolar converter
• Programmable MIDI-CV interface with 8 outputs
• Pitch, gate and trigger input for external control
• Effect loop-in path with controls for send, return and mix
• Main output with drive control and switchable soft clipping
• Line output: 6.3 mm jack, balanced
• Line input: 6.3 mm jack, balanced
• Headphone output: 6.3 mm jack
• Expression output: 6.3 mm jack
• Effect send and return: 6.3 mm jack
• MIDI In / Out / Thru: 5-pin DIN
• USB-C port for USB-MIDI
• Dimensions : 348mm x 246mm x 66mm
• Weight : 1.94kg
• Colour: White fog
• Includes 14 patch cables, USB cable, external power supply unit
