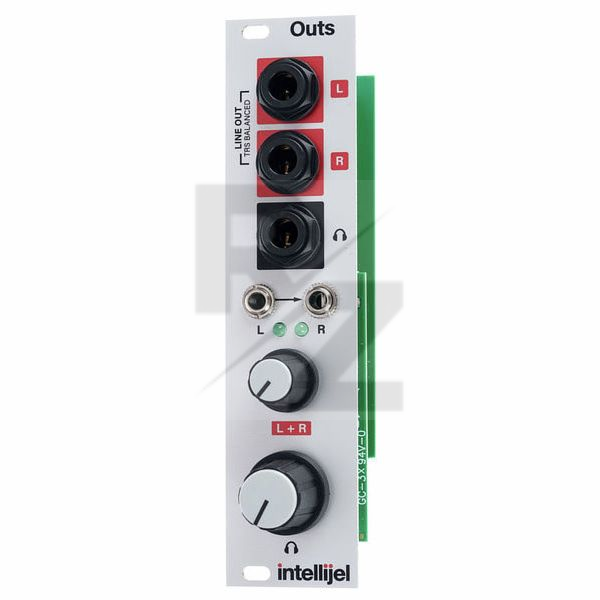

Intellijel Designs Outs
Eurorack module

Latest User Reviews
Does what it says
Although it’s not the fanciest module, it is an essential and the fact that you can connect to IntelliJ Mixup with a rear ribbon is fab too! Recommended.
Simple and great
Simple and great output module, works well and knobs feel good, highly recommended as first interface module or for a smaller setup.
Useful but not the greatest headamp
This is a really neat module for a small, self-contained rack. It gives you useful line outs as well as a safe headphone out, and connects behinds the scenes with the Intellijel Mix-Up, so you can bring a bunch of sources together. It can make life a lot easier.
However, the tiny headamp is somewhat lacking- while it can go nice and loud, it doesn't exert terribly good driver control, even on relatively easy to drive dynamic headphones. Even something like the bog standard Sennheiser HD-25 70 Ohm can sound flat and lifeless- not sure if it's lack of slew or current, but don't make any critical mix decisions on the basis of the tiny headamp in here- run the outs into your desk/sound interface and use something with a better headamp. It's not terribly linear or detailed.
Don't let that put you off though, if the combo of this and the Mix-Up suit your needs. It's a lot of functionality for the HP and can make a useful combo. If you don't need the Mix-Up connection though, I'd seriously consider the Befaco Out v3, which is smaller, and which has a slightly better headphone out.
One note, I did experience a lot of crackling via the headphone out at first- this was improved with a few blasts of air duster and a tiny bit of switch cleaner- maybe the connectors were slightly tarnished. Worth a try if this happens to you.
Technical Data
- Manufactured by Intellijel Designs
- Released in 2019
- Average price : $184
- Output module with balanced stereo output (2x 6.3 mm TRS) and headphone output (6.3 mm TRS)
- Separate volume controls for line and headphone output
- 2x 3.5 mm input with signal LED
- Left input normalized to right input for mono signals
- Current consumption: 37 mA (+12V) / 29 mA (-12V)
- Width: 6 HP
- Depth: 35 mm
