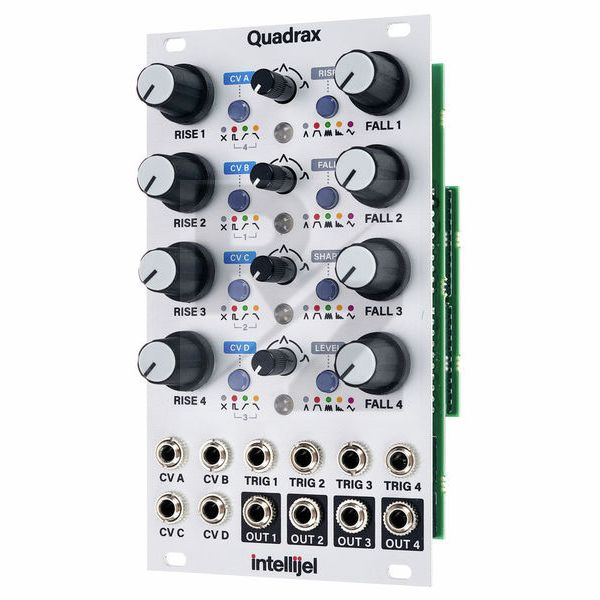

Intellijel Designs Quadrax
Eurorack Module
Latest User Reviews
Envelopes and complex functions
The different coloured lights and CV assignment options take a bit of getting used to. But basically this can be either
1. just a simple and easy to use quad AD\AR Envelope and LFO or
2. an amazingly deep source of complex functions and modulation
If you only need #1 then its extremely playable but for #2 there are definitely non-intuitive button combinations and alternate modes to remember to get the full Quadrax value. That is the price of having all this in 14hp.
Very efficient, high build quality
Technical Data
- Manufactured by Intellijel Designs
- Released in 2019
- Average price : $487
- 4-Channel function and envelope generator
- 5 Different modes per channel: AD (attack / decay), AHR (attack / hold / decay), cycle, pulse burst and morphing LFO
- 4 CV inputs that can be used per channel to control attack or decay
- Chaining of several channels possible to create complex envelope curves
- Characteristic curve per channel adjustable from logarithmic to linear to exponential
- Trigger input and output per channel
- Current consumption: 106mA (+12V) / 9mA (-12V)
- Width: 14 HP
- Depth: 38 mm
