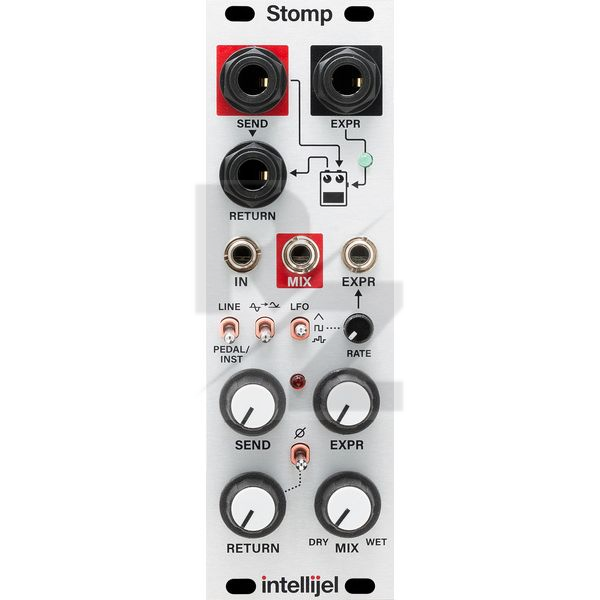

Intellijel Designs Stomp
Eurorack Module
Latest User Reviews
A whole new world
This module alows you to connect your guitar pedals into the eurorack system, it even lets you modulate the exp circuit in your pedals either by the modules own LFO or by any other modulation source in your rack. You can even plug your guitar into it and make your rack serve as a effects unit. Suffice it to say that this little module opens up a whole new world of sonic possibilities. This module couldn't be better.
Technical Data
- Manufactured by Intellijel Designs
- Average price : $211
- Effect pedal interface with expression control and LFO
- Send and return socket (6.3 mm jack) for integrating guitar effects
- Control for level adjustment of send and return
- Clip LED and phase reversal switch
- Impedance switchable between line and instrument
- Mix control (wet/dry)
- Adjustable expression pedal output (6.3 mm jack) converts Eurorack control voltages into expression pedal signals for use on modulation inputs of effect pedals
- Internal LFO with three waveforms (triangle, square, random) and rate control, normalised to expression output
- LFO switchable from bipolar to unipolar
- Power consumption: 47mA (+12V) / 13mA (-12V)
- Width: 8 U
- Depth: 35 mm
