IO Instruments Pasiphae

Eurorack Module

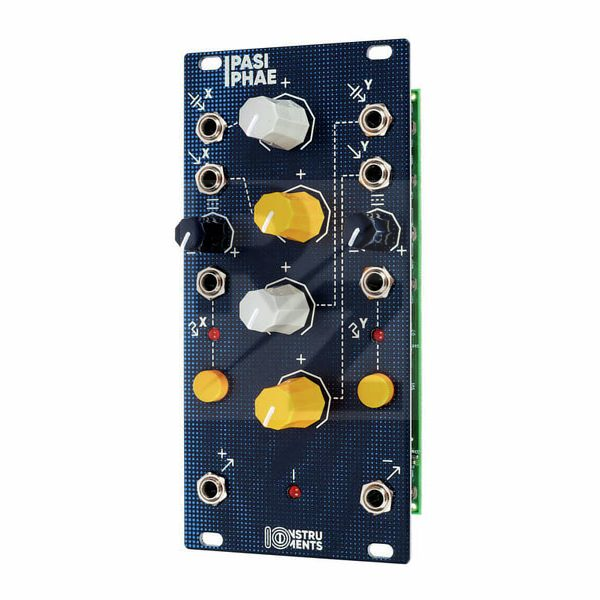

Image IO Instruments Pasiphae

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

  • Manufactured by IO Instruments
  • Released in 2020
  • Average price : $140
  • Experimental ring modulator
  • X and Y audio inputs, each with attenuator
  • CV inputs (DC-coupled) for X and Y levels with attenuators
  • DC offset controls for X and Y channels
  • Mute switch per channel with CV input
  • Positive and inverted signal output
  • Peak LED
  • Low-distortion circuit design with high headroom
  • Low crosstalk between X/Y channels
  • Current consumption: 60mA (+12V) / 60mA (-12V)
  • Width: 12 HP
  • Depth: 25 mm
