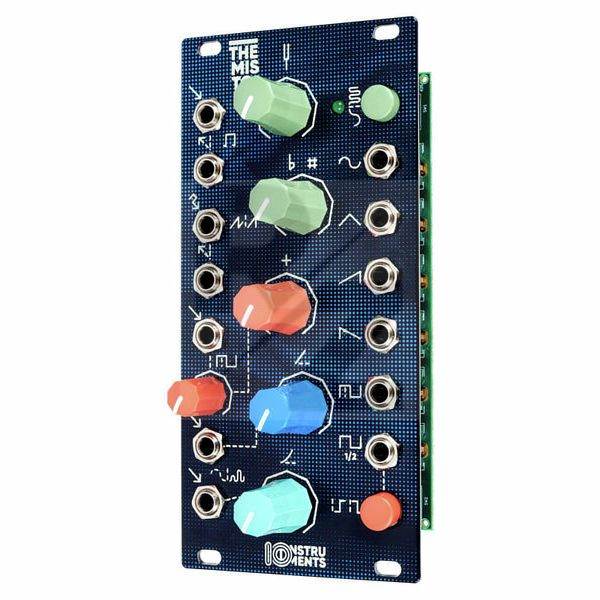

IO Instruments Themisto
Eurorack Module

Latest User Reviews
very cool VCO
this is a really cool VCO and LFO with lots of different waveforms and other features. it has a really nice sound.
Unbeatable at the price
I couldn't find any other Eurorack VCO in this price range that offered so many features at the price. The obvious competitors are the Doepfer A110-1 and 110-2 but the Themisto wins out with its suboctave output, sine output and linear FM with attenuator.
I don't have proper test equipment, but as far as I can tell the tracking is very good over the audio range and the waveforms look precise - if you're looking for analogue "quirkiness" and "character" then you may have to add your own.
There are two jumpers on the back to enable v/oct and gate from the Eurorack bus.
Cons: The knobs feel a bit wobbly (even alongside low-cost modules from Doepfer and Behringer) and - although the fine tune knob makes it easy to tune accurately - the slightest touch on the coarse-tune knob knocks it off tune (I'm tempted to just remove the knob). That's why it doesn't get a clean 5 stars.
Documentation is minimal - you know how to use a VCO, right?
Being picky, an octave switch would have been a nice addition, and I'd prefer a layout with controls at the top and jacks at the bottom...
Technical Data
- Manufactured by IO Instruments
- Released in 2019
- Average price : $162
- Analogue VCO
- Outputs for sine, triangle, sawtooth (rising and falling), square (with adjustable pulse width)
- Square wave sub-oscillator with switchable phase position
- Frequency range: 10 - 13,0000 Hz
- Switchable LFO mode: 0.5 - 6000 Hz
- CV inputs for linear and exponential FM, each with attenuators
- CV input for pulse width modulation
- Oscillator sync input
- Buffered thru outputs for pitch CV and sync gate
- Current consumption: 60mA (+12V) / 60mA (-12V)
- Width: 12 HP
