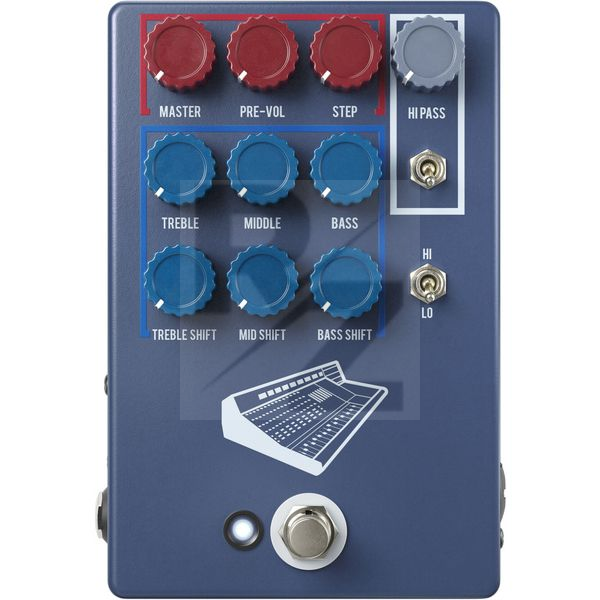

JHS Pedals Colour Box V2 10 Preamp / EQ

Preamp / EQ DI Box

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by JHS Pedals
Limited 10 Year Anniversary Edition
Sound and character of a vintage Neve studio console
2 Serial gain stages
Suitable for electric guitar, acoustic guitar, bass, keyboards, vocals or other instruments
Extended EQ section with +/- 17 dB cut/boost in each band
Can provide 48V phantom power to condenser microphones
True bypass
Controls for Master, Pre-Vol, Step, Hi Pass, Treble, Middle, Bass, Treble Shift, Mid Shift, Bass Shift
Hi-Pass toggle switch activates the Hi-Pass section
Hi/Lo toggle switch selects between clean mode (lower gain) or distorted mode (higher gain)
INST/XLR switch selects input source
Pad switch (-20 dB) for the XLR input
Bypass foot switch
Status LED
Metal housing
Combo input: XLR / TRS (6.3 mm)
Outputs: XLR and 6.3 mm mono jack
Power supply with optional 9 V DC power supply unit (not included), 2.1 x 5.5 mm barrel connector, centre negative
Power consumption: 193 mA
Dimensions: (L x W x H): 120 x 110 x 60 mm
Weight : approx. 480g
Made in USA
