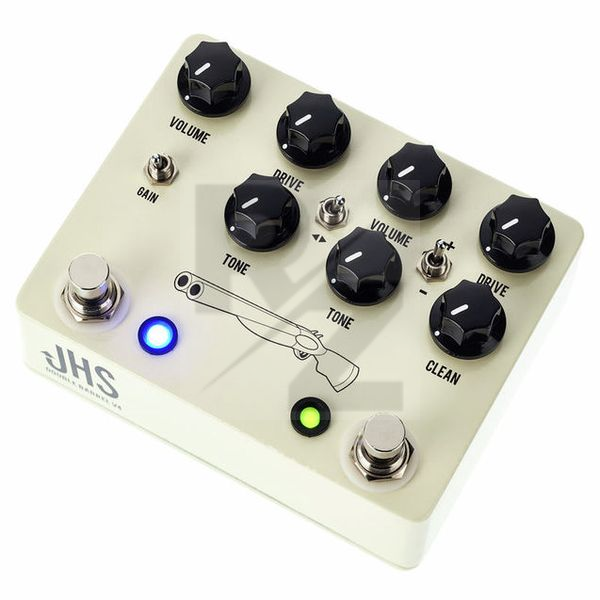

JHS Pedals Double Barrel V4

Technical Data

• Manufactured by JHS Pedals
• Released in 2017
• Average price : $487
• Overdrive
• 2 overdrive circuits from the JHS Moonshine V2 and Morning Glory
• Both circuits can be used separately or shared
• Sequence in signal chain switchable
• True Bypass
• Moonshine Section controls for Volume, Drive, Tone and Clean Blend
• Morning Glory Section Controls Volume, Drive and Tone
• Toggle switch to select the order of Morning Glory and Moonshine Section in the signal chain
• Proof Toggle switch for selecting between the two overdrives of the Moonshine V2
• Moonshine foot switch
• Morning Glory foot switch
• Status LEDs
• Metal housing
• 6.3 mm mono jack input / output
• 6.3 mm TRS (Red Remote) Remote foot switch Input for remote control of the proof toggle switch
• Power supply via 9 V DC power supply (2.1 mm x 5.5 mm barrel connector, polarity (-) inside, not included), battery operation is not supported
• Current consumption less than 100 mA
• Dimensions (L x W x H): 110 x 125 x 50 mm
• Weight : 360g
• Made in USA
