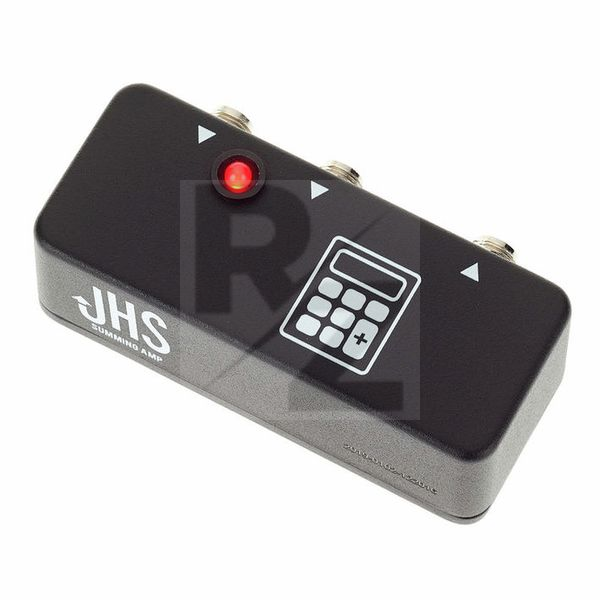

JHS Pedals Summing Amp
Effect Mixer
Latest User Reviews
Simple and useful
I used JHS Buffered Splitter to split delay signal into Dry and Wet (with a muter + volume pedal for the Wet signal) and then merge them back together using this JHS Summing Amp. Works perfectly well, constant part of my pedal board. It’s attached under my pedalboard, I even forget it’s there which is a sign it does what it should, not more, not less.
I use this to plug two guitars into one amp. Works perfectly - there is no cross-talk between the guitars, for example if you turn one down it does not affect the other.
Technical Data
- Manufactured by JHS Pedals
- Released in 2019
- Average price : $117
- Mixes two mono input signals into a mono output signal
- Status LED
- Metal housing
- 2 x 6.3mm mono jacks inputs
- 6.3 mm Mono jack output
- Power supply via 9 V power supply (2.1 mm x 5.5 mm coaxial connection, polarity (-) inside, not included)
- Power consumption less than 100 mA
- Dimensions : 95mm x 47mm x 35mm
- Weight : 120g
- Made in USA
